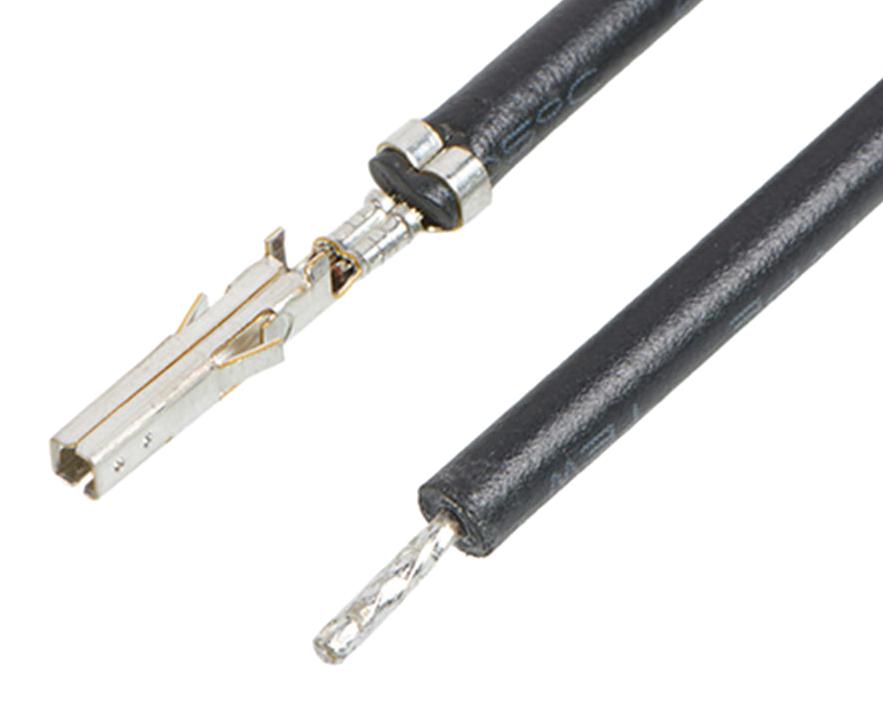

MOLEX 2153411123 Mini-Fit Jr. Power Lead
The Mini-Fit Jr. Female-to-Pigtail leads are off-the-shelf pre-crimped connectors designed for reliable power and signal connections in electronic assemblies. With a length of 225 mm and rated for 9.0A at 600V, these black-colored leads feature tin-plated brass contacts for enhanced conductivity and corrosion resistance. Suitable for use with Mini-Fit Jr. receptacles and panel mount housings, they ensure secure, efficient, and durable connections in power distribution and wiring applications across various industries, supporting easy and quick installation.
MOLEX 2153411123 Mini-Fit Jr. Power Lead Specifications:
- Cable Length: 225.00mm
- Wire Size: 16 AWG
- Wire Insulation Diameter: 1.80-3.10mm
- Material - Metal: Brass
- Material - Plating Mating: Tin
- Material - Plating Termination: Tin
- Current - Maximum per Contact: 9.0A
- Voltage - Maximum: 600V
- Color - Resin: Black
- Gender: Female-Pigtail
- Termination Interface: Crimp or Compression
- Net Weight: 5.337g
- Packaging Type: Bag
- Application: Power, Wire-to-Board, Wire-to-Wire
- Connector Type: Mini-Fit Jr. to Pigtail
- Application Assembly Configuration: Connector to Connector
- Series: 215341 Series
- RoHS and REACH compliant
Buy the Buy Molex Mini-Fit Jr. Female-to-Pigtail Part Number 2153411123 Online
Discover the Molex Mini-Fit Jr. female-to-pigtail power leads, designed for secure and efficient power and signal connections. With a length of 225mm, rated for 9A at 600V, these tin-plated brass connectors feature a reliable crimp connection compatible with Mini-Fit Jr. receptacles and panel mounts. Perfect for applications requiring robust, quick-to-install wiring solutions, they provide excellent conductivity, corrosion resistance, and mechanical strength. Ideal for power distribution and electronic assembly in industrial, commercial, and DIY projects, ensuring durability and safe operation.
Buy Molex 2153411123 now and experience unmatched reliability, durable power connections, and quick installation for electronic wiring projects.
Frequently Asked Questions
Where can I buy MOLEX 2153411123?
You can click on the BUY or RFQ button to purchase 2153411123 from an authorized MOLEX distributor.
How do I troubleshoot issues or seek technical support for part 2153411123?
You can download the 2153411123 datasheet or visit the MOLEX website for support.
Who is the manufacturer of 2153411123?
MOLEX
