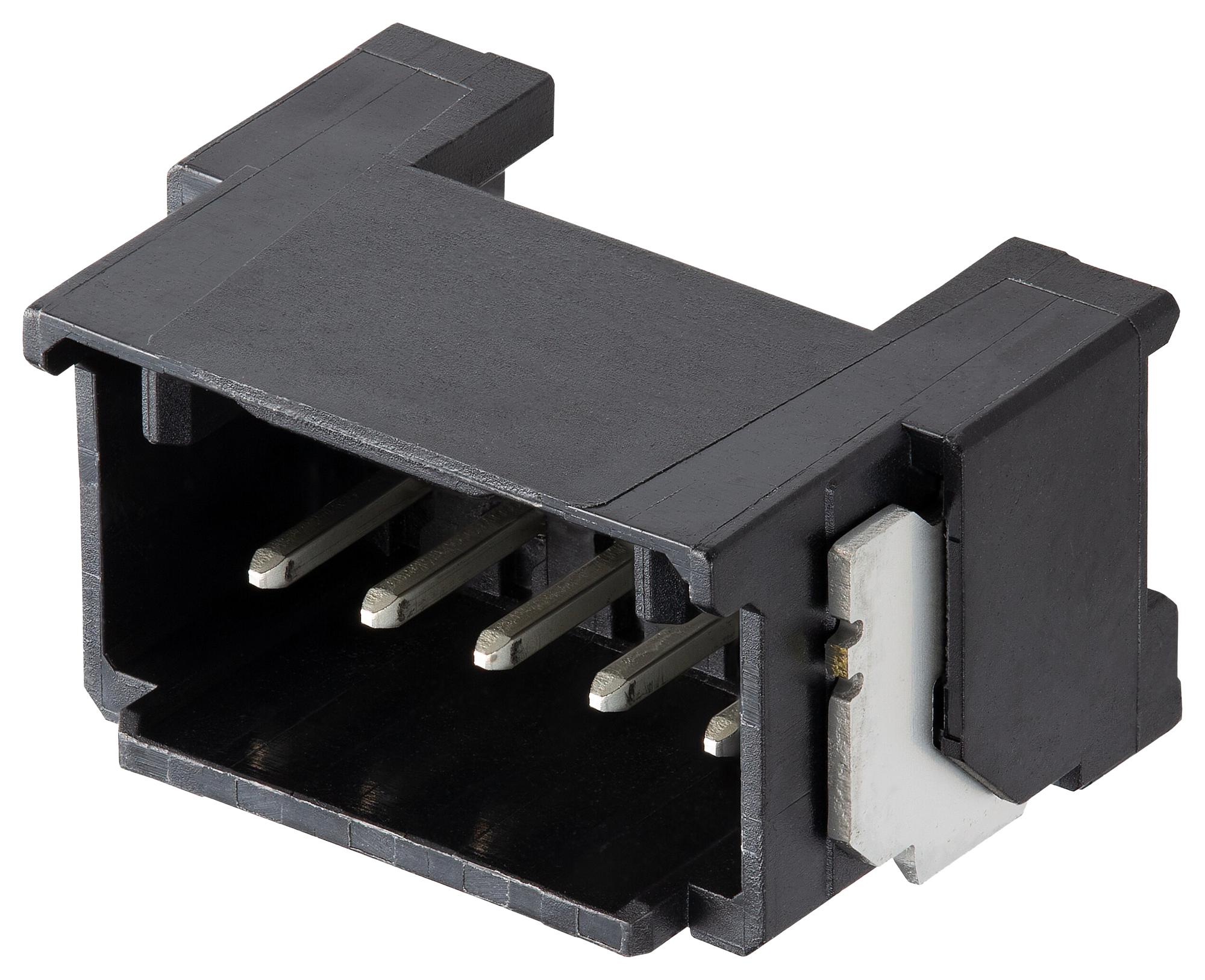

MOLEX 2170640061 Micro-One Wire-to-Board Header
The MOLEX 217064-0061 is a Micro-One wire-to-board header, offering a compact and reliable solution for connecting wires to printed circuit boards. Designed with a right-angle orientation and a 2.00mm pitch, this header accommodates a range of applications where space is limited. The header features 6 circuits and is glow-wire capable, ensuring compliance with specific safety standards. Its tin-bismuth plating provides excellent solderability and corrosion resistance, while the polyamide resin offers durability and insulation. This component is commonly used in consumer electronics, automotive systems, and industrial equipment where secure and efficient wire-to-board connections are required.
MOLEX 2170640061 Micro-One Wire-to-Board Header Specifications:
- overview: Micro-One Wire-to-Board Connector System
- description: Micro-One Wire-to-Board Header, Right-Angle, 2.00mm Pitch, Single Row, Glow-Wire Capable, 6 Circuits, Tin-Bismuth Plating, Black
- series: 217064
- circuits_loaded: 6
- circuits_maximum: 6
- color_resin: Black
- durability_mating_cycles: 30
- glow_wire_capable: Yes
- lock_to_mating_part: Yes
- material_metal: Brass
- material_plating: Tin-Bismuth
- material_resin: Polyamide
- net_weight: 1098.363/mg
- number_of_rows: 1
- orientation: Right Angle
- pcb_retention: Yes
- packaging_type: Embossed Tape on Reel
- pitch_mating_interface: 2.00mm
- polarized_to_pcb: Yes
- temperature_range_operating: -40° to +105°C
- termination_interface_style: Surface Mount
- current_maximum_per_contact: 4.0A
- voltage_maximum: 250V AC (RMS)/DC
- material_info_drawing_numbers: Application Specification 2059790000-AS-000, Packaging Specification 2170649200-SPK-200, Product Specification 2059790000-PS-000, Sales Drawing 2170640000-SD-000
