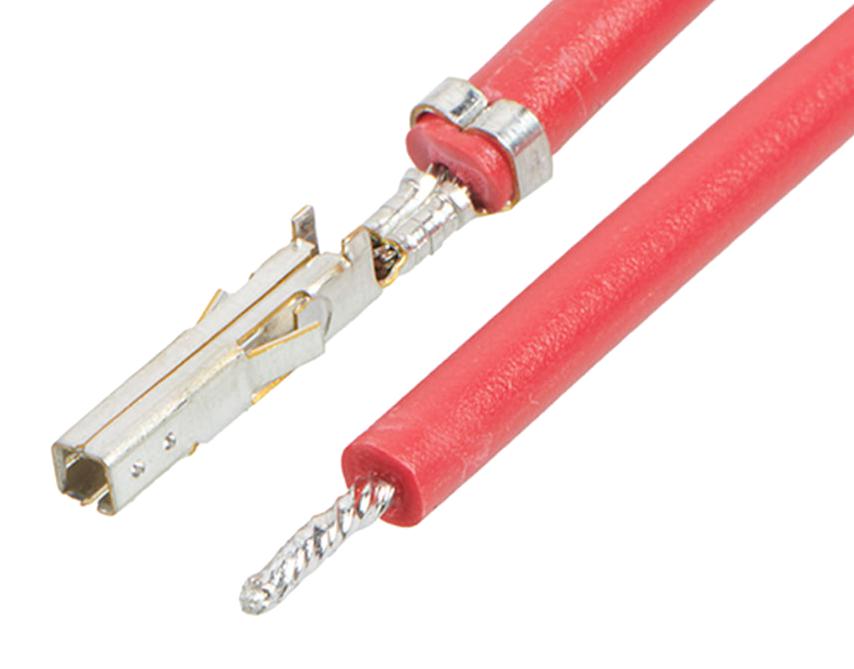

MOLEX 2153412113 Mini-Fit Jr. Pigtail Cable
The MOLEX 215341-2113 is a pre-crimped lead cable assembly designed for various power and signal transmission applications. It combines a Mini-Fit Jr. female connector with a pigtail lead, providing a ready-to-use solution for wire-to-board and wire-to-wire connections. The tin plating ensures excellent conductivity and corrosion resistance, while the red resin color facilitates easy identification. This cable assembly is ideal for applications requiring a secure and efficient connection, simplifying assembly processes and reducing potential errors.
MOLEX 2153412113 Mini-Fit Jr. Pigtail Cable Specifications:
- overview: Off-the-Shelf Pre-Crimped Leads
- application: Power, Wire-to-Board, Wire-to-Wire Assembly
- configuration: Pre-crimped Lead Only
- connector_type: Mini-Fit Jr.-to-Pigtail
- cable_length: 225.00mm
- circuits_loaded: 1
- color: Red (Resin)
- material_metal: Brass
- plating_mating: Tin
- plating_termination: Tin
- net_weight: 3.960 g
- packaging_type: Bag, Single Ended
- termination_interface_style: Crimp or Compression
- wire_insulation_diameter: 1.80-3.10mm
- wire_size_awg: 18
- wire_cable_type: UL 1015
- current_max_per_contact: 9.0A
- voltage_max: 600V
- upc: 193264559664
- elv: Not Relevant
- rohs: Compliant
- reach_svhc: Not Contained
- china_roh: Not Contained Per D(2020)4578-DC
- halogen_free: Yes
- low_halogen: Not Low-Halogen
- sales_drawing: 2153411111-000
- use_with_housing: 5557, 44516, 42474, 43760
