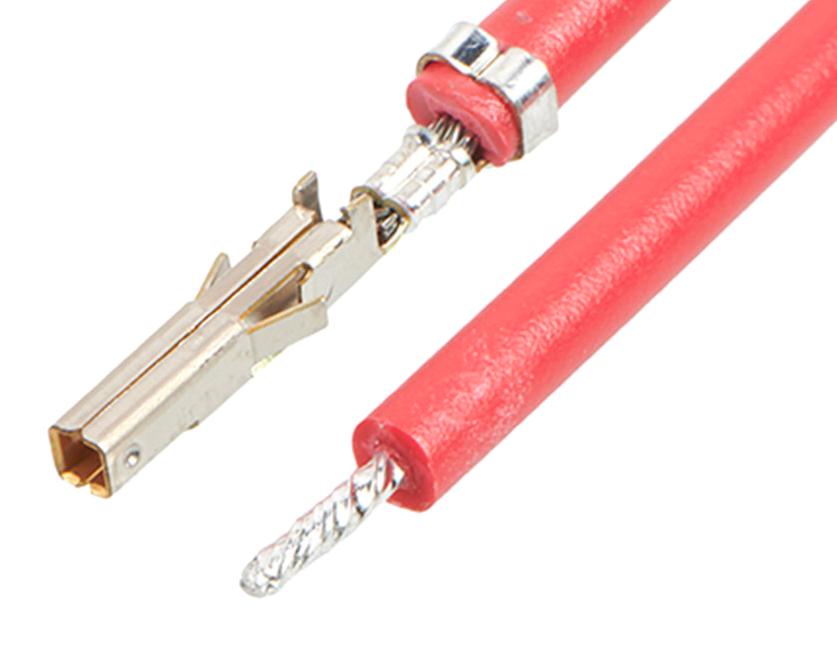

MOLEX 2153412224 Mini-Fit Jr. Pigtail Cable
The MOLEX 215341-2224 is a pre-crimped lead cable assembly designed for versatile applications including power distribution, wire-to-board connections, and wire-to-wire linking. This assembly utilizes a Mini-Fit Jr. female connector on one end and a pigtail configuration on the other, offering a convenient and ready-to-use solution. The gold plating on the mating interface ensures excellent conductivity and corrosion resistance, while the tin plating on the termination interface facilitates secure crimp connections. Suitable for a wide range of industrial and commercial applications where reliable power transmission is required.
MOLEX 2153412224 Mini-Fit Jr. Pigtail Cable Specifications:
- overview: Off-the-Shelf Pre-Crimped Leads
- product_family: Cable Assemblies
- series: 215341
- application: Power, Wire-to-Board, Wire-to-Wire Assembly
- configuration: Pre-crimped Lead Only
- connector_type: Mini-Fit Jr.-to-Pigtail
- cable_length: 300.00mm
- circuits_loaded: 1
- color: Red (Resin)
- material_metal: Brass
- plating_mating: Gold (Au)
- plating_termination: Tin
- net_weight: 6.924/g
- packaging_type: Bag, Single Ended
- termination_interface_style: Crimp or Compression
- wire_insulation_diameter: 1.80-3.10mm
- wire_size_awg: 16
- wire_cable_type: UL 1015
- current_max_per_contact: 9.0A
- voltage_max: 600V
- elv_compliance: Not Relevant
- rohs_status: Compliant
- reach_svhc_compliance: Not Contained
- china_rohs_compliance: Not Contained Per D(2020)4578-DC
- halogen_free_status: Not Low-Halogen
- upc: 193264559879
