MOLEX 2153262061 Mini-Fit Jr. Cable Assembly

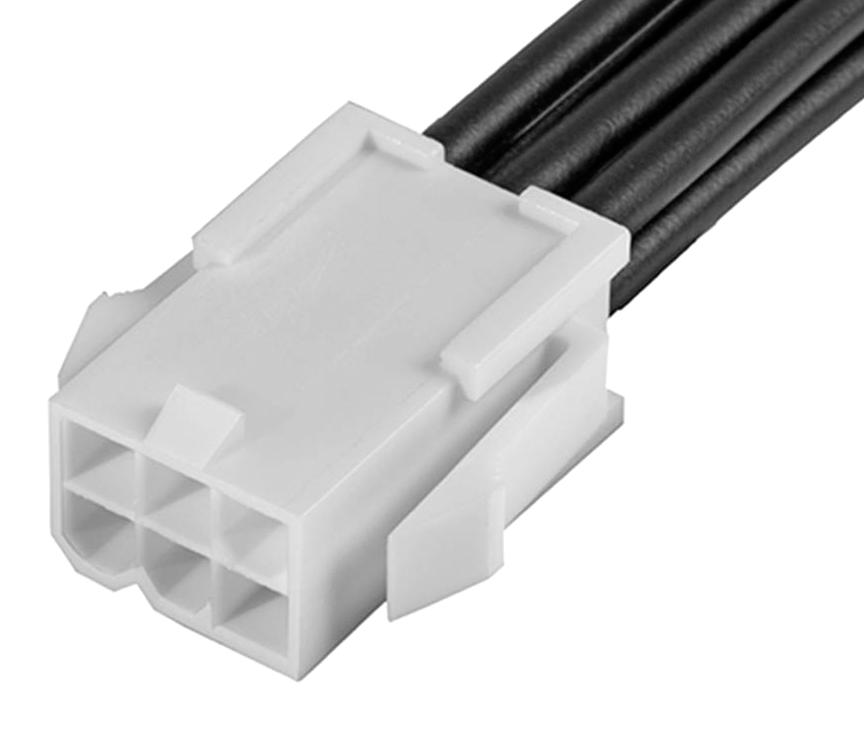

The MOLEX 215326-2061 is a Mini-Fit Jr. female-to-pigtail off-the-shelf cable assembly designed for power, wire-to-board, and wire-to-wire applications. It boasts a dual-row configuration, 6 circuits, and a 150mm length, making it suitable for various industrial and commercial applications. The gold plating on the mating interface ensures excellent conductivity and durability.
Authorized Distributors
Source:Mouser Electronics
Part No:215326-2061
Stock:9
Inv Date:05-30-2026
Price: Unit price: $7.05
Buy/RFQ:
Source:RS Americas, Inc
Part No:215326-2061
Stock:0
Inv Date:05-29-2026
Price: Unit price: $3.59
Buy/RFQ:
MOLEX 2153262061 Mini-Fit Jr. Cable Assembly Specifications:
- overview: Mini-Fit Family Power Connectors
- application: Power, Wire-to-Board, Wire-to-Wire Assembly
- configuration: Single Ended
- connector_type: Mini-Fit Jr.-to-Pigtail
- cable_length: 150.00mm
- circuits_loaded: 6
- color_resin: Black
- gender: Female-Pigtail
- lock_to_mating_part: Yes
- material_metal: Brass
- plating_mating: Gold (Au)
- plating_termination: Tin
- material_resin: Nylon
- net_weight_g: 23.616
- number_of_rows: 2
- pitch_mating_interface: 4.20mm
- plating_min_mating: 0.762µm
- plating_min_termination: 0.762µm
- termination_interface_style: Crimp or Compression
- wire_insulation_diameter_mm: 1.80-3.10mm
- wire_size_awg: 16
- wire_cable_type: UL 1015
- current_maximum_per_contact_a: 9.0
- voltage_maximum_v: 600
- upc: 193264590155
- material_info: Not Contained
- drawing_number: 2153262061-000
- mates_with: ['5559 Dual Row', '5566 Vertical with Pegs', '5566 Vertical without Pegs', '5569 Right Angle Dual Row with Flanges', '5569 Right Angle Dual Row with Pegs', '43810', '44068', '44281', '87427', '42404', '42440']
