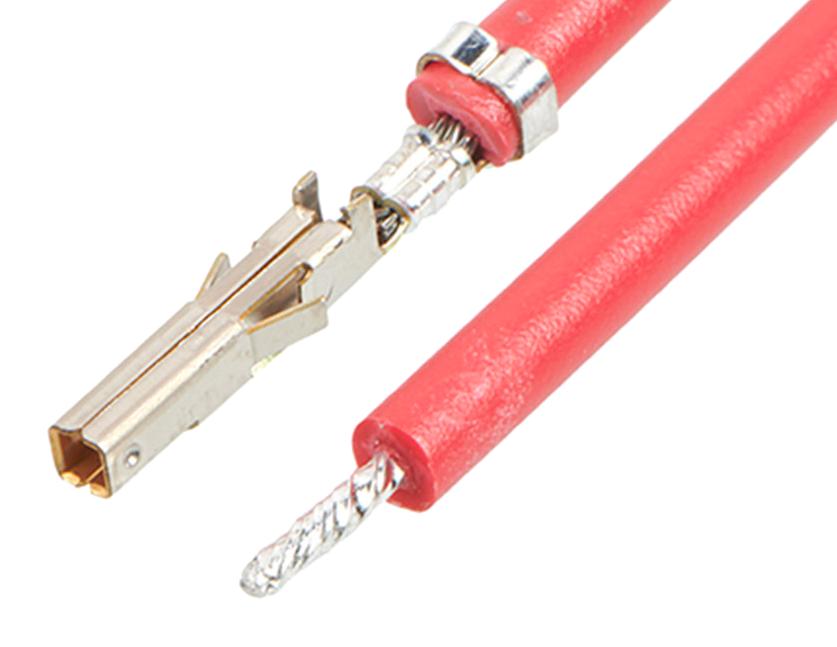

MOLEX 2153412225 Mini-Fit Jr. Pigtail Cable
The MOLEX 215341-2225 is a pre-crimped lead cable assembly designed for versatile applications including power distribution, wire-to-board connections, and wire-to-wire linking. It utilizes a Mini-Fit Jr. female connector on one end and a pigtail configuration on the other, offering a convenient and ready-to-use solution. The gold plating on the mating interface ensures excellent conductivity and corrosion resistance, while the tin plating on the termination interface facilitates secure crimp connections. This cable is ideal for industrial equipment, automotive systems, and other applications requiring robust and reliable power connections.
MOLEX 2153412225 Mini-Fit Jr. Pigtail Cable Specifications:
- overview: Off-the-Shelf Pre-Crimped Leads
- application: Power, Wire-to-Board, Wire-to-Wire Assembly
- configuration: Pre-crimped Lead Only
- connector_type: Mini-Fit Jr.-to-Pigtail
- cable_length: 450.00mm
- circuits_loaded: 1
- color: Red (Resin)
- material_metal: Brass
- plating_mating: Gold (Au)
- plating_termination: Tin
- net_weight: 10.109/g
- packaging_type: Bag
- ended: Single Ended
- termination_interface_style: Crimp or Compression
- wire_insulation_diameter: 1.80-3.10mm
- wire_size_awg: 16
- wire_cable_type: UL 1015
- current_max_per_contact: 9.0A
- voltage_max: 600V
- elv: Not Relevant
- rohs: Compliant
- reach_svhc: Not Contained
- china_rohs: Not Contained Per D(2020)4578-DC
- halogen_free: Yes
- low_halogen: Not Low-Halogen
- rohs_phthalates: Not Contained
- upc: 193264559886
- use_with_housing: Mini-Fit Jr. Receptacle Housing 5557, Mini-Fit BMI Slide and Lock Panel Mount 44516, Mini-Fit BMI Panel Mount Receptacle Housing 42474, 43760
