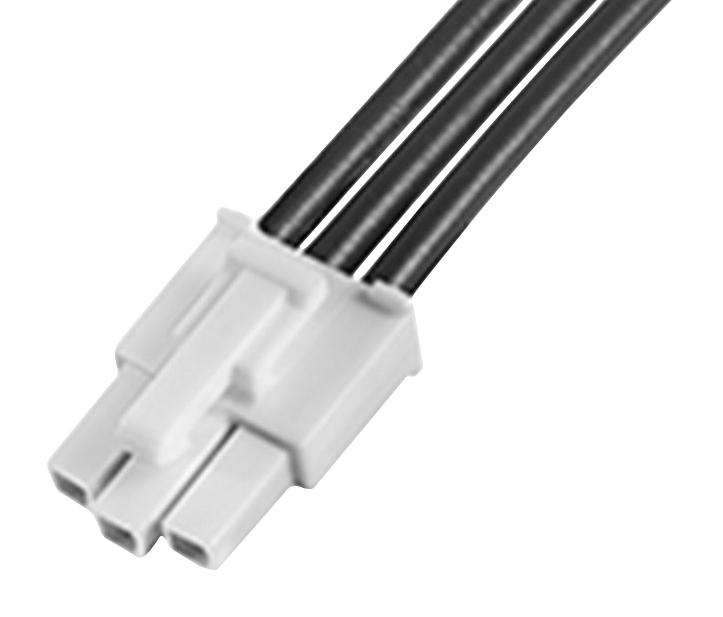

MOLEX 2153222031 Mini-Fit Jr. Cable Assembly
The MOLEX 215322-2031 is a Mini-Fit Jr. male-to-male off-the-shelf (OTS) cable assembly designed for power and wire-to-wire applications. It boasts a black resin body, brass material with gold mating plating and tin termination plating, and a single row configuration. This assembly is ideal for applications requiring a robust and reliable connection, commonly found in industrial equipment and automotive systems. The assembly is RoHS compliant and features a maximum current rating of 9.0A and a maximum voltage of 600V.
MOLEX 2153222031 Mini-Fit Jr. Cable Assembly Specifications:
- overview: Mini-Fit Family Power Connectors
- application: Power, Wire-to-Wire Assembly
- configuration: Dual Ended
- connectors: Connector to Connector Mini-Fit Jr.
- cable_length: 150.00mm
- circuits_loaded: 3
- color_resin: Black
- material_metal: Brass
- plating_mating: Gold (Au)
- plating_termination: Tin
- material_resin: Nylon
- net_weight: 14.560 g
- number_of_rows: 1
- packaging_type: Bag
- pitch_mating_interface: 4.20mm
- plating_min_mating: 0.762µm
- plating_min_termination: 2.032µm
- single_ended: No
- termination_interface_style: Crimp or Compression
- wire_insulation_diameter: 1.80-3.10mm
- wire_size_awg: 16
- wire_cable_type: UL 1015
- current_maximum_per_contact: 9.0A
- voltage_maximum: 600V
- upc: 193264597420
- elv: Not Relevant
- rohs: Compliant
- reach_svhc: Not Contained
- halogen_free_status: Not Low-Halogen
- mates_with: Mini-Fit Jr. Receptacle Housing 5557, Mini-Fit TPA2 Cable Assembly 145135
- drawing_number: 2153222031-000
