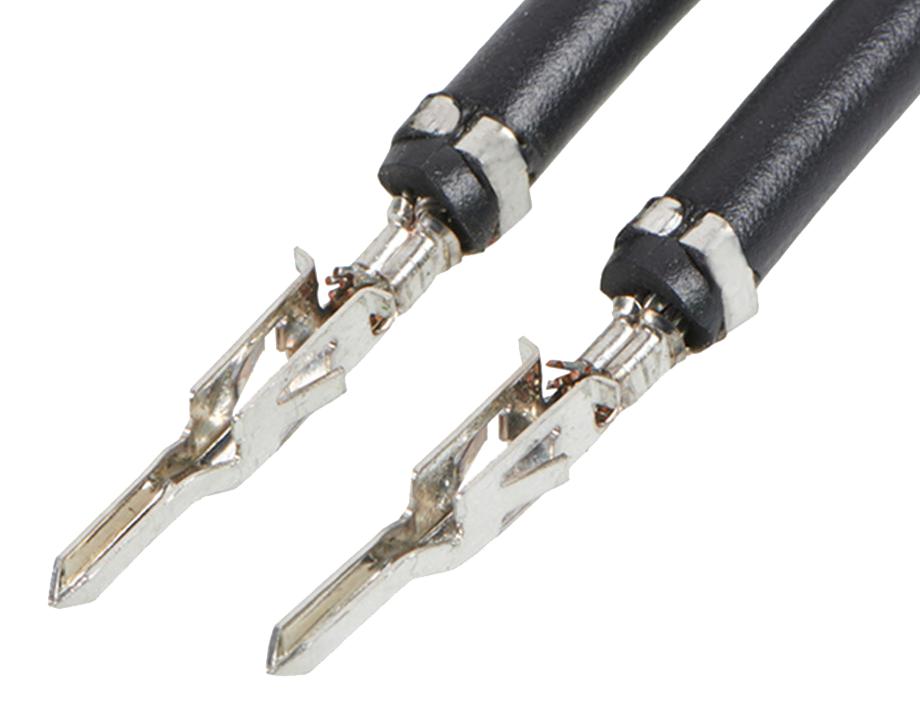

MOLEX 2153421124 Mini-Fit Jr. Pre-Crimped Lead
The MOLEX 215342-1124 is a pre-crimped lead cable assembly, part of the Mini-Fit Jr. family. This assembly provides a convenient, ready-to-use solution for power and wire-to-wire connections. It features male-to-male Mini-Fit Jr. connectors with tin plating for enhanced conductivity and corrosion resistance. The 300mm length and 16 AWG wire gauge make it suitable for a variety of applications in industrial equipment, automotive systems, and consumer electronics. Its robust construction and reliable performance ensure a secure and long-lasting connection.
MOLEX 2153421124 Mini-Fit Jr. Pre-Crimped Lead Specifications:
- overview: Off-the-Shelf Pre-Crimped Leads
- application: Power, Wire-to-Wire Assembly
- configuration: Pre-crimped Lead Only
- connector_type: Mini-Fit Jr. Both Ends
- cable_length: 300.00mm
- circuits_loaded: 1
- color_resin: Black
- material_metal: Brass
- plating_mating: Tin
- plating_termination: Tin
- net_weight: 6.928/g
- packaging_type: Bag Single Ended
- termination_interface_style: Crimp or Compression
- wire_insulation_diameter: 1.80-3.10mm
- wire_size_awg: 16
- wire_cable_type: UL 1015
- current_max_per_contact: 9.0A
- voltage_max: 600V
- upc: 193264559923
- elv: Not Relevant
- rohs: Compliant
- reach_svhc: Not Contained
- halogen_free_status: Not Low-Halogen
