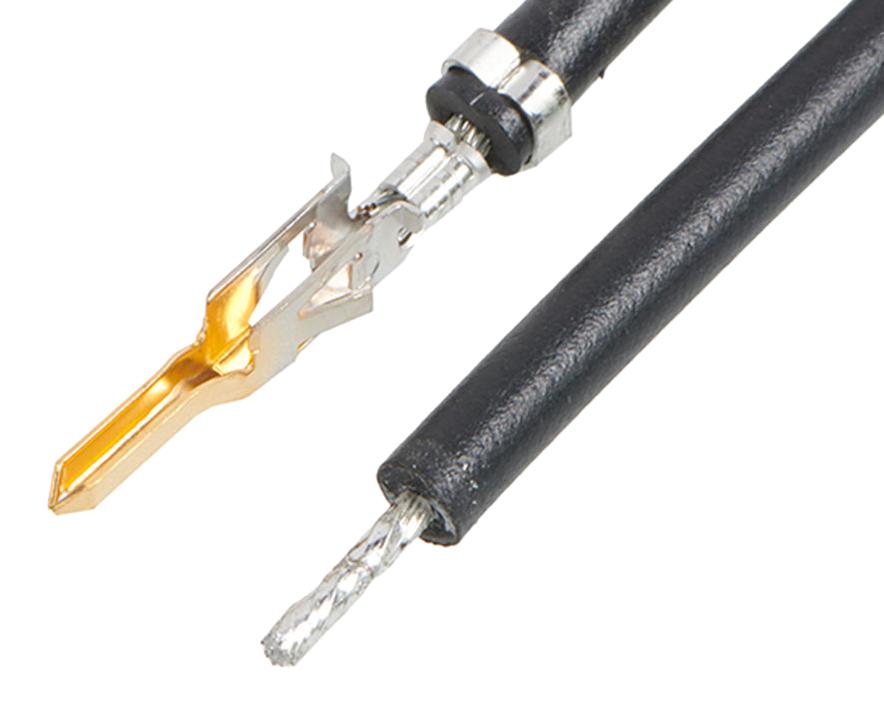

MOLEX 2153431224 Mini-Fit Jr. Male-to-Pigtail
The MOLEX 215343-1224 is a pre-crimped lead cable assembly designed for power and wire-to-wire applications. This assembly connects a Mini-Fit Jr. male connector to a pigtail, providing a convenient and reliable solution for various industrial and commercial applications. The gold plating on the connector ensures excellent signal transmission and corrosion resistance, while the 16 AWG wire gauge supports a maximum current of 9.0A and a voltage of 600V. It is RoHS compliant and suitable for use with Mini-Fit Jr. plug housings.
MOLEX 2153431224 Mini-Fit Jr. Male-to-Pigtail Specifications:
- product_family: Cable Assemblies
- series: 215343
- application: Power, Wire-to-Wire
- assembly_configuration: Pre-crimped Lead Only
- overview: Off-the-Shelf Pre-Crimped Leads
- product_name_description: Mini-Fit Jr.-to-Pigtail
- upc: 193264560479
- cable_length: 300.00mm
- circuits_loaded: 1
- color_resin: Black
- gender: Male-Pigtail
- material_metal: Brass
- material_plating_mating: Gold
- material_plating_termination: Tin
- net_weight: 6.920/g
- packaging_type: Bag
- single_ended: Yes
- termination_interface_style: Crimp or Compression
- wire_insulation_diameter: 1.80-3.10mm
- wire_size_awg: 16
- wire_cable_type: UL 1015
- current_maximum_per_contact: 9.0A
- voltage_maximum: 600V
Buy the 215343-1224 MOLEX Mini-Fit Jr. Male-to-Pigtail | myMectronic
Purchase the MOLEX 215343-1224 cable assembly securely and efficiently online.
Buy Now
Frequently Asked Questions
Where can I buy MOLEX 2153431224?
You can click on the BUY or RFQ button to purchase 2153431224 from an authorized MOLEX distributor.
How do I troubleshoot issues or seek technical support for part 2153431224?
You can download the 2153431224 datasheet or visit the MOLEX website for support.
Who is the manufacturer of 2153431224?
MOLEX
