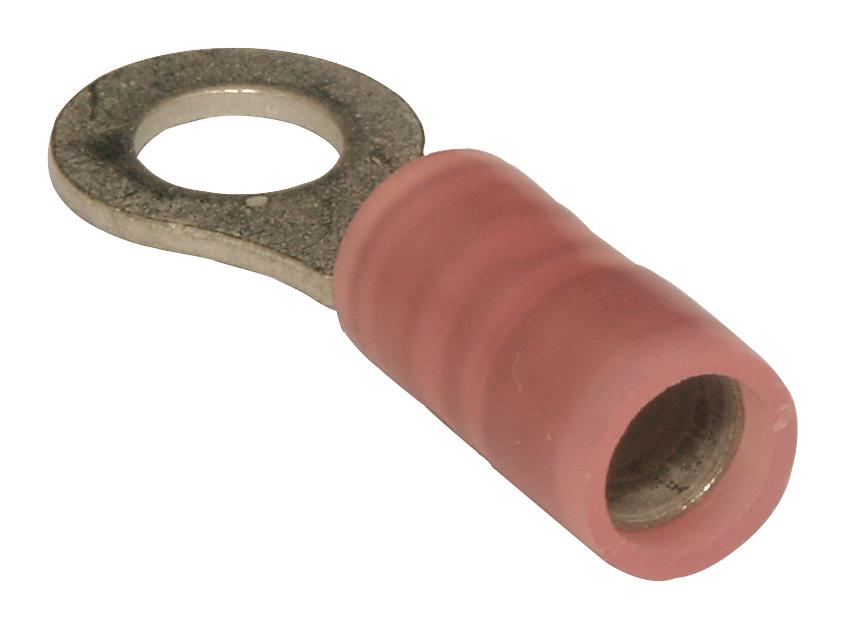

MOLEX 190670028 Ring Terminal
The NylaKrimp Funnel Entry Ring Tongue Terminal is designed for 8 AWG wire with a stud size of 1/2 inch (M12). This solderless terminal features a brazed, closed barrel type with a nylon (PA) insulation material, offering high durability and reliable crimping performance. Certified by CSA and UL, it ensures safety and compliance for industrial applications. Its tin plating enhances corrosion resistance, and it is suitable for crimp or compression termination interfaces. The terminal comes in a convenient bag packaging, weighing approximately 5.100 grams, ideal for wiring harness assemblies.
MOLEX 190670028 Ring Terminal Specifications:
- Material - Plating Mating: Tin
- Material - Insulation: Nylon (PA)
- Stud Size: 1/2 inch (M12)
- Wire Size AWG: 8
- Wire Insulation Diameter: 8.98mm max.
- Barrel Type: Closed - Brazed
- Flammability: 94V-2
- Net Weight: 5.100 grams
- Packaging: Bag
- Contact Interface: Crimp or Compression
- Certification: CSA, UL
- Plating Min - Mating: 2.540um
- Plating Min - Termination: 2.540um
Buy the Molex Series Ring Terminal: 0190670028
Purchase the Molex 0190670028 ring terminal online today and enjoy dependable electrical connections for your industrial projects. Designed for 8 AWG wire, it features a durable brass barrel with tin plating and nylon insulation, ensuring corrosion resistance and safety. Its brazed, closed barrel design provides a secure crimp for consistent performance. Suitable for crimp or compression termination, this terminal is CSA and UL certified, making it ideal for assembly and wiring applications. Order now for fast delivery and seamless installation.
Buy Molex 0190670028 now and experience unmatched reliability and performance with high-quality solderless ring terminals for industrial wiring.
