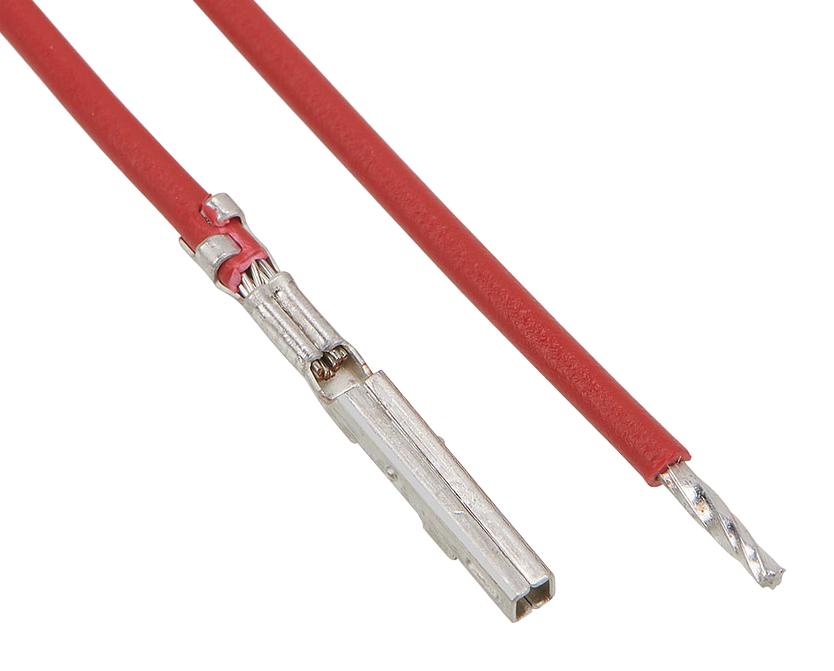

MOLEX 2153462121 Pre-Crimped Lead
This high-quality pre-crimped lead features a Squba-to-Pigtail configuration, measuring 75.00mm in length with a 16 AWG wire size. It is designed with tin (Sn) plating for enhanced conductivity and corrosion resistance, suitable for connecting electronic components with reliable performance. The lead's female-to-pigtail setup, made from modified polystyrene, supports connector-to-connector assembly in various electrical applications. Its UL 11028 certification confirms adherence to safety standards, while the 14A and 600V ratings ensure robust electrical performance in demanding environments.
MOLEX 2153462121 Pre-Crimped Lead Specifications:
- Length: 75.00mm
- Wire Size: 16 AWG
- Wire Insulation Diameter: 3.60mm
- Plating: Matte Tin
- Material - Metal: Copper Alloy
- Material - Resin: Modified Polystyrene
- Color - Resin: Red
- Gender: Female-Pigtail
- Number of Circuits: 1
- Maximum Current: 14.0A
- Maximum Voltage: 600V
- Termination Style: Crimp or Compression
- Cable Length: 75.00mm
- Lock to Mating Part: Yes
- Plating Min - Mating: 2.540um
- Packaging: Bag
- Reference Drawing Number: 2153461 121-000
- RoHS Compliance: Yes
- UL Certification: UL 11028
- Certification: RoHS, China RoHS
Buy the Buy Molex Connector Part Number 2153462121 Online
Purchase the Molex 2153462121 pre-crimped lead online today for your electronic and industrial needs. Featuring a reliable squba-to-pigtail connection, 75mm length, 16 AWG wire, tin-plated for corrosion resistance, and UL certified for safety. Designed with a female-to-pigtail configuration, it ensures secure, efficient assembly for connector applications. Made from durable copper alloy and modified polystyrene, this lead offers maximum current capacity of 14A and voltage of 600V, suitable for demanding environments. Get yours now for dependable performance and quality assurance.
Order your Molex Series2153462121 pre-crimped lead today and ensure your electronic projects meet the highest safety and reliability standards.
Frequently Asked Questions
Where can I buy MOLEX 2153462121?
You can click on the BUY or RFQ button to purchase 2153462121 from an authorized MOLEX distributor.
How do I troubleshoot issues or seek technical support for part 2153462121?
You can download the 2153462121 datasheet or visit the MOLEX website for support.
Who is the manufacturer of 2153462121?
MOLEX
