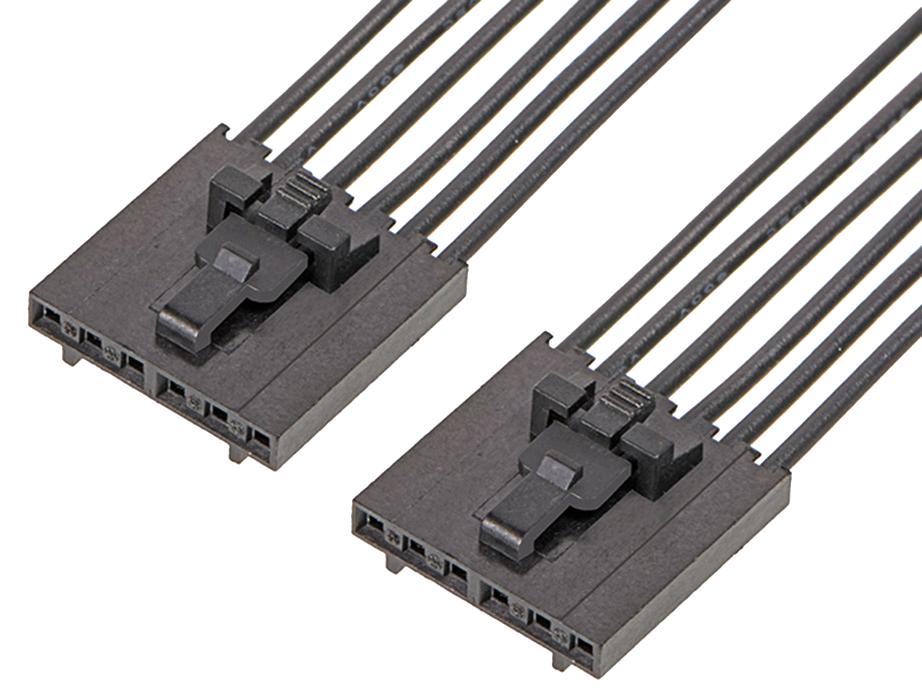

MOLEX 2162701062 Stackable Signal Cable Assembly
This off-the-shelf stackable linear positive lock cable assembly supports versatile applications ranging from prototyping to mass production in consumer, industrial, automotive, data, telecom, and medical fields. It features dual contact points for redundancy, a secure connector lock for high-vibration environments, and flexible connection options including female-to-female leads, split-peg PCB headers, and stackable low-profile housings. Rated for 600V AC/DC and 3A, it has a polyester alloy housing, phosphor bronze contacts, tin plating, and operates between -40°C and +105°C. Designed for up to 25 mating cycles, ensuring reliable electrical performance.
MOLEX 2162701062 Stackable Signal Cable Assembly Specifications:
- Series: 216270
- Application: Signal, Wire-to-Wire, Wire-to-Board
- Assembly Configuration: Connector to Connector
- Cable Length: 150.00mm
- Circuits: 6
- Color - Resin: Black
- Gender: Female-Female
- Lock to Mating Part: Yes
- Material - Metal: Phosphor Bronze
- Material - Plating Mating: Tin
- Material - Plating Termination: Tin
- Material - Resin: Polyester Alloy
- Net Weight: 6.667 grams
- Number of Rows: 1
- Packaging Type: Bag
- Pitch - Mating Interface: 2.54mm
- Termination Interface: Style: Crimp or Compression
- Wire Insulation Diameter: 1.63mm max
- Wire Size AWG: 22
- Wire/Cable Type: Discrete Wire Assembly
- Current - Maximum per Contact: 3.0A
- Voltage - Maximum: 600V AC/DC
- Operating Temperature Range: -40°C to +105°C
- Durability: Up to 25 mating cycles
Buy the Molex Series 216270 Signal Cable Assembly: 2162701062
Discover the high-quality Molex Series 216270 stackable cable assembly, perfect for prototyping and mass production. Featuring dual contact points for enhanced reliability, secure locking mechanisms, and flexible configurations, this assembly supports up to 600V and 3A current. Its durable polyester alloy housing and tin-plated contacts ensure long-lasting electrical performance. Operating over a wide temperature range, it withstands harsh environments, making it ideal for industrial, automotive, medical, and data applications. Easy to install, robust, and reliable for critical electronic systems.
Order your Molex Series 216270 cable assembly today and ensure reliable connections with premium quality and versatile design options.
