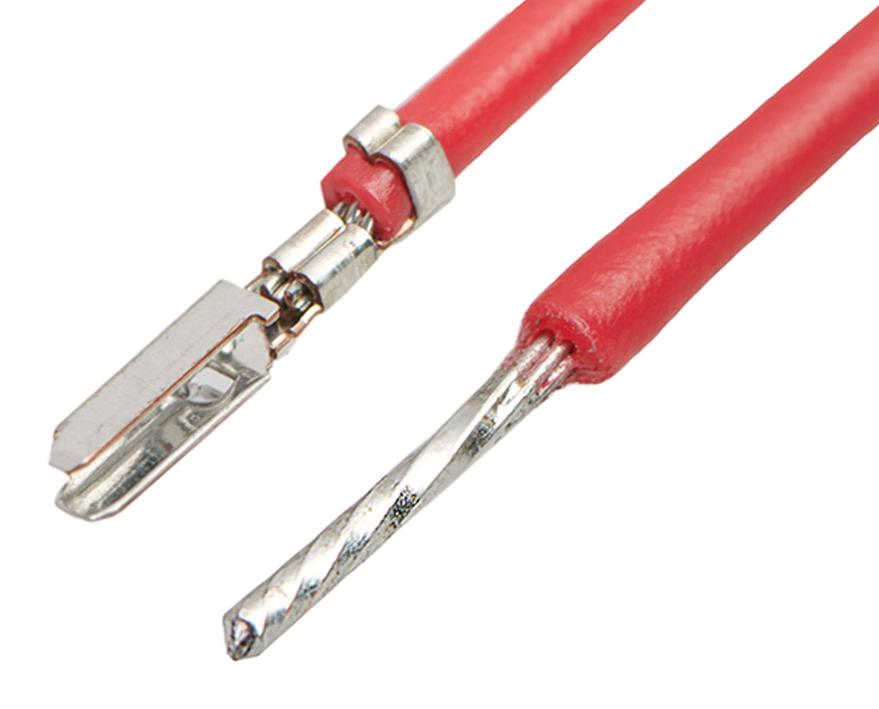

MOLEX 2157112122 CLIK-Mate Pre-Crimped Lead
The MOLEX 215711-2122 is a pre-crimped lead assembly within the CLIK-Mate series, ideal for signal transmission in wire-to-board applications. This assembly provides a convenient, ready-to-use connection solution, eliminating the need for on-site crimping. It features a male-to-pigtail configuration, tin-plated copper alloy contacts, and a red resin insulation. The 150mm lead length and 24 AWG wire gauge make it suitable for a variety of low-voltage applications requiring a secure and reliable connection.
MOLEX 2157112122 CLIK-Mate Pre-Crimped Lead Specifications:
- overview: Off-the-Shelf Pre-Crimped Leads
- application: Signal, Wire-to-Board Assembly
- configuration: Pre-crimped Lead Only
- connector_to_connector: CLIK-Mate-to-CLIK-Mate
- cable_length: 150.00mm
- circuits_loaded: 1
- color_resin: Red
- material_metal: Copper Alloy
- plating_mating: Tin (Sn)
- plating_termination: Tin (Sn)
- net_weight: 0.560/g
- packaging_type: Bag
- plating_min_mating: 0.406µm
- plating_min_termination: 0.406µm
- single_ended: Yes
- termination_interface_style: Crimp or Compression
- wire_insulation_diameter: 0.78-1.28mm
- wire_size_awg: 24
- wire_cable_type: UL 10002
- current_max_per_contact: 2.0A
- voltage_max: 100V AC (RMS)/DC
- elv: Not Relevant
- rohs: Compliant
- china_rohs: Not Contained
- reach_svhc: Not Contained
- halogen_free: Not Low-Halogen
