MOLEX 2160101023 Datasheet & Stock

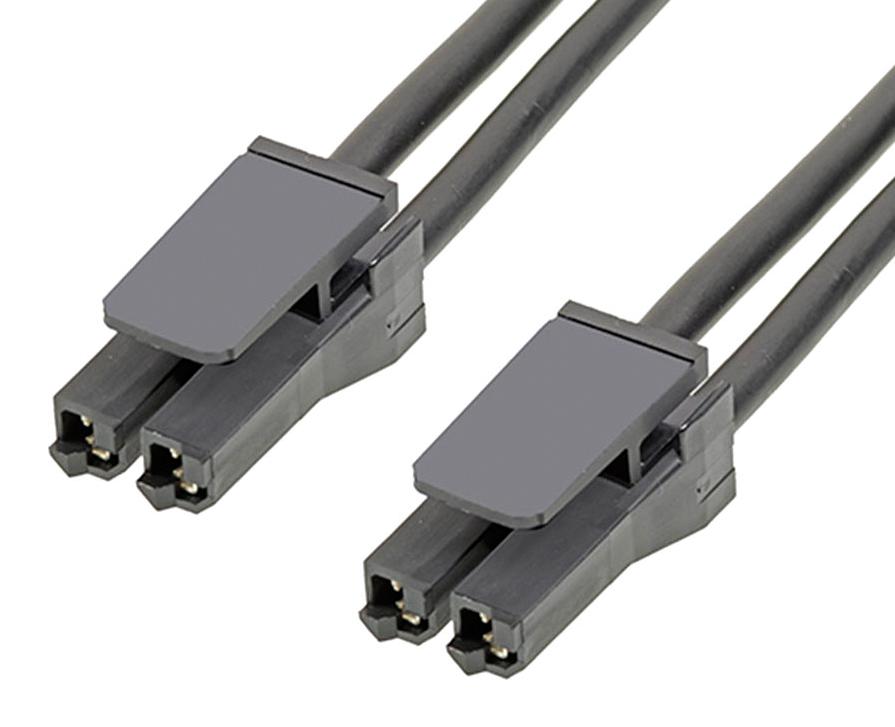

The 216010 series Super Sabre cable assemblies are off-the-shelf solutions designed to deliver a current rating of 34A per blade and support voltages up to 600V. They are suitable for high-current and high-voltage applications, featuring a low-profile design for versatile use across industries such as automotive, consumer, medical, and telecommunications. These assemblies utilize silver-plated high-conductivity alloy terminals, which provide reliable high-performance connections while mitigating fretting corrosion issues. The flat-blade terminals include four independent contact points for enhanced electrical performance and are fully isolated to prevent damage or shock. Equipped with positive latch mechanisms and terminal position assurance (TPA) features, they ensure secure mating even in high-vibration environments. The components are rated for operation up to +105°C, compliant with USCAR-2 level 3 standards, and include UL1977 and UL60950 finger test certification. Constructed with nylon housing and copper contacts, they offer a cost-effective alternative to gold-plated connectors, optimized for 10 to 12 AWG wires. Conforming to safety and durability standards, these assemblies are ideal for various demanding applications.

View 2160101023Datasheet [pdf]
