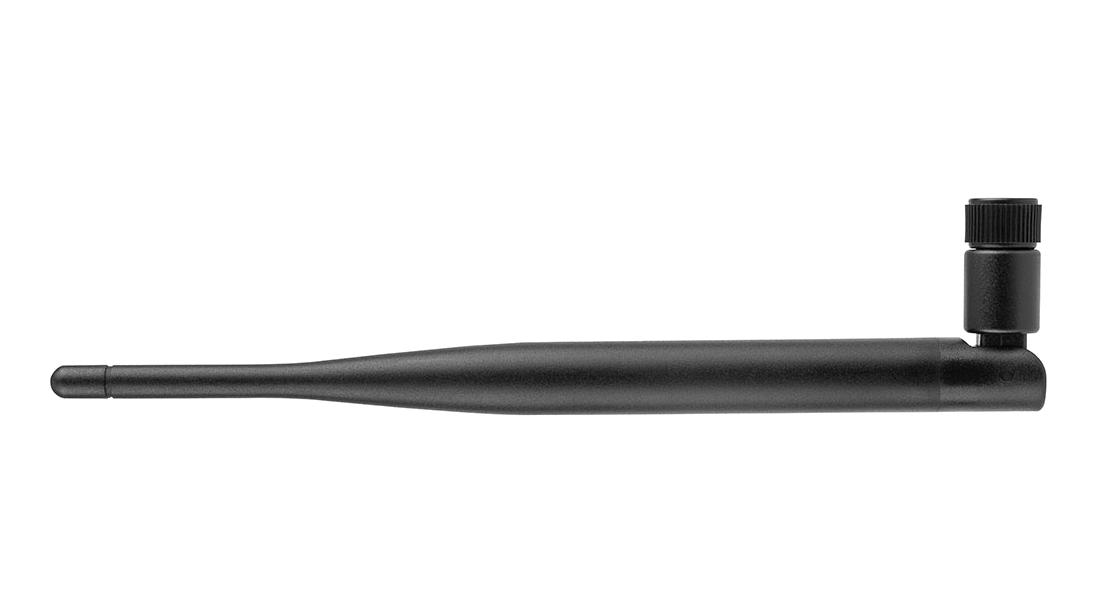

MOLEX 2161960001 External Antenna
This high-band external antenna operates at 868MHz and is designed for LoRa applications, offering omnidirectional radiation with a peak gain of 2.5 dBi. Made from PET material, it measures 196mm in length and features an SMA connector for reliable connectivity. The antenna performs effectively within a temperature range of -40°C to +85°C and boasts over 75% efficiency at 868 MHz. It complies with RoHS and REACH standards, making it suitable for industrial, scientific, and medical applications that require robust wireless communication solutions.
MOLEX 2161960001 External Antenna Specifications:
- Frequency Range: 868 MHz
- Length: 196.00 mm
- Connector: SMA (M)
- Peak Gain: 2.5 dBi at 868 MHz
- Return Loss: <1 dB
- Efficiency: >75% at 868 MHz
- Polarization: Linear
- Radiation Pattern: Omnidirectional
- Material: PET
- Operating Temperature: -40°C to +85°C
- Packaging: PET bag
- Compliance: RoHS, REACH
- Status: Active
- Part Number: 2161960001
- Application: ISM, LoRa, industrial wireless
Buy the Molex Series 216196 External Antenna: 868MHz LoRa SMA Connector
Purchase the Molex Series 216196 external antenna online today to improve your LoRa and IoT implementations. With a length of 196mm and SMA connector, this omnidirectional antenna is ideal for industrial applications. Its high efficiency and wide operating temperature range of -40°C to +85°C ensure reliable performance in any environment. Made from durable PET, it complies with RoHS and REACH standards, offering you a certified, environmentally friendly solution for wireless connectivity needs, ensuring seamless and robust IoT deployments.
Order your Molex Series 216196 high-band external antenna today and enhance your IoT projects with reliable, efficient wireless connectivity.
