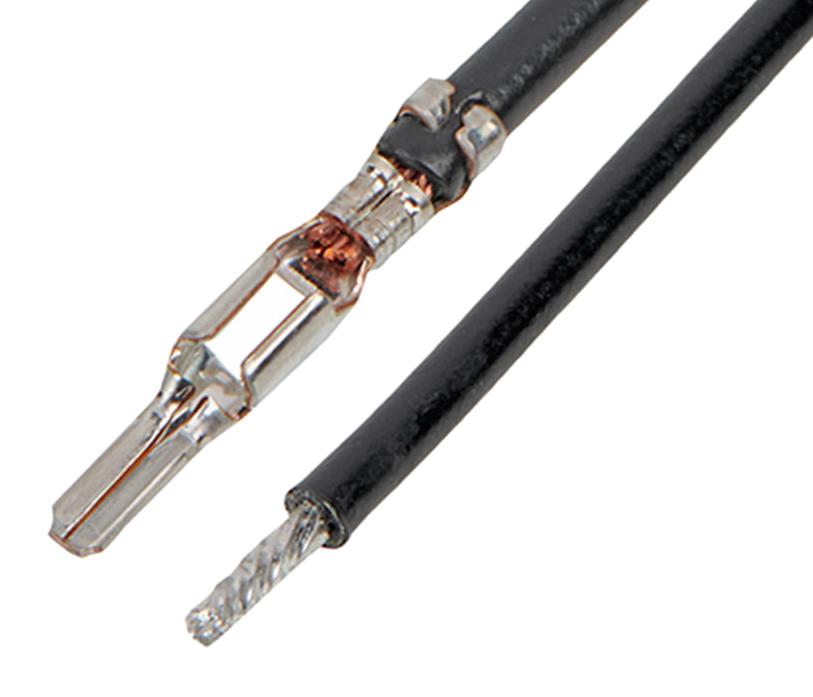

MOLEX 2178431123 Mizu-P25 Pre-Crimped Lead
The MOLEX 217843-1123 is a pre-crimped lead assembly, offering a convenient and reliable solution for wire-to-wire signal connections. This assembly incorporates a Mizu-P25 male connector transitioning to a pigtail, ensuring compatibility with various systems. The tin plating on both mating and termination surfaces enhances conductivity and corrosion resistance, while the 20 AWG wire gauge provides adequate current carrying capacity. Ideal for applications requiring pre-terminated connections, this assembly simplifies integration and reduces assembly time.
MOLEX 2178431123 Mizu-P25 Pre-Crimped Lead Specifications:
- overview: Off-the-Shelf Pre-Crimped Leads
- application: Signal, Wire-to-Wire Assembly
- configuration: Pre-crimped Lead Only
- connector_to_connector: Mizu-P25-to-Pigtail
- cable_length: 225.00mm
- circuits_loaded: 1
- color_resin: Black
- material_metal: Phosphor Bronze
- plating_mating: Tin
- plating_termination: Tin
- net_weight: 1.584/g
- single_ended: Yes
- termination_interface_style: Crimp or Compression
- wire_insulation_diameter: 1.40-1.90mm
- wire_size_awg: 20
- wire_cable_type: UL 10002
- voltage_maximum: 125V
- elv_compliance: Not Relevant
- rohs_compliance: Compliant
- reach_svhc_compliance: Not Contained Per D(2020)9139-DC
- halogen_free_status: Not Low-Halogen
- upc: 195842150089
- drawing_number: 2178431121-000
