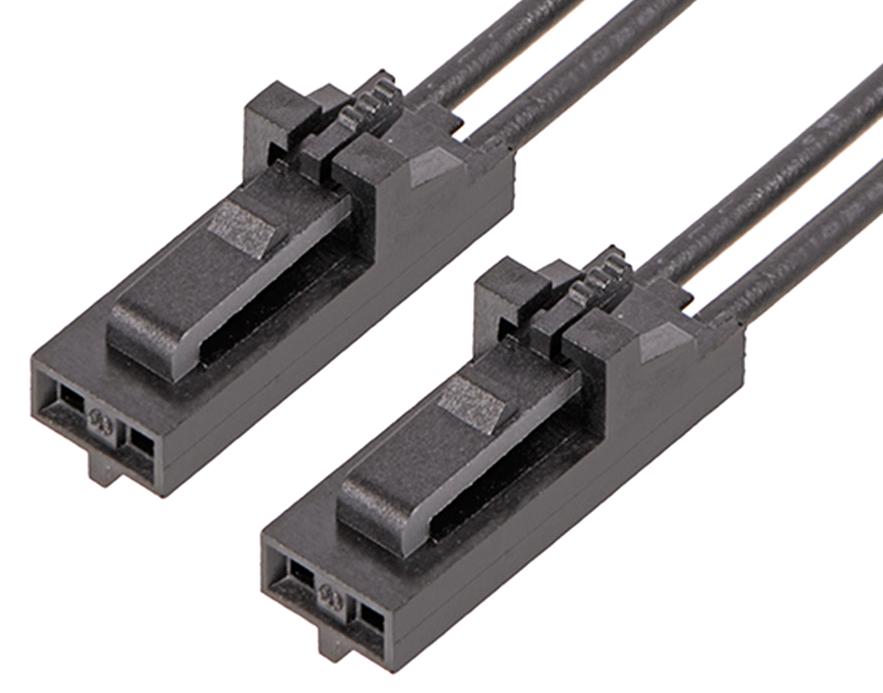

MOLEX 2162701024 Signal Connector
The off-the-shelf stackable linear female-to-female cable assembly provides versatile and secure connection options for prototyping and production. Featuring positive lock mating for high-vibration environments, terminal position assurance locks prevent back-out, ensuring reliable operation. It includes split-peg PCB headers for stability during soldering and offers design flexibility with low-profile, stackable housings, vertical, and right-angle headers. Made from polyester alloy with phosphor bronze contacts tin-plated, it supports up to 600V AC/DC and 3A current. Operating reliably from -40°C to +105°C and rated for 25 mating cycles, it conforms to UL and CSA standards.
MOLEX 2162701024 Signal Connector Specifications:
- Cable Length: 600.00mm
- Circuits: 2
- Color - Resin: Black
- Gender: Female-Female
- Material - Metal: Phosphor Bronze
- Material - Plating Mating: Tin
- Material - Plating Termination: Tin
- Material - Resin: Polyester Alloy
- Maximum Voltage: 600V AC/DC
- Maximum Current: 3.0A
- Temperature Range: -40°C to +105°C
- Locking: Positive lock with terminal position assurance
- Housing: Low-profile, stackable design
- Number of Mating Cycles: Up to 25
- Certifications: UL E29179, CSA LR19980
Buy the Molex 2162701024 – Reliable Signal Connector for Industrial Applications
Purchase the Molex signal connector online today for reliable, high-vibration performance in industrial equipment and prototyping applications. Featuring positive lock technology, it ensures secure connections even in demanding environments. Its versatile design includes low-profile, stackable housings, vertical and right-angle headers, and stable PCB headers for easy soldering. Made from durable polyester alloy with phosphor bronze contacts tin-plated, the connector supports up to 600V and 3A current, operating from -40°C to +105°C, with up to 25 mating cycles, meeting UL and CSA standards for safety and reliability.
Get Molex 2162701024 today—built for precision with high-vibration locking and versatile connection options.
Frequently Asked Questions
Where can I buy MOLEX 2162701024?
You can click on the BUY or RFQ button to purchase 2162701024 from an authorized MOLEX distributor.
How do I troubleshoot issues or seek technical support for part 2162701024?
You can download the 2162701024 datasheet or visit the MOLEX website for support.
Who is the manufacturer of 2162701024?
MOLEX
