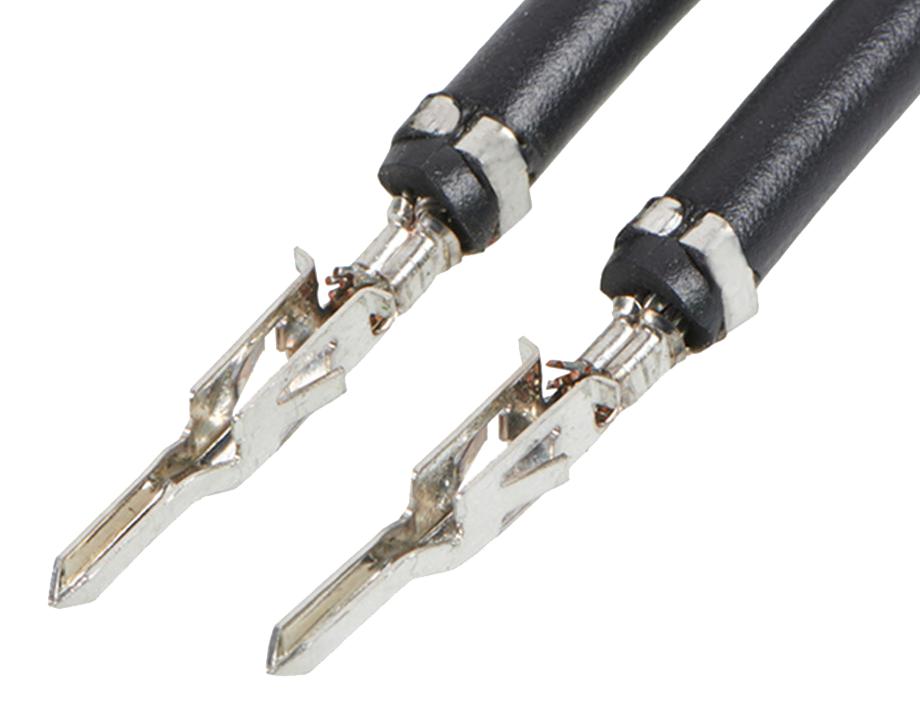

MOLEX 2153421125 Mini-Fit Jr. Pre-Crimped Lead
The MOLEX 215342-1125 is an off-the-shelf pre-crimped lead assembly designed for power and wire-to-wire applications. This assembly utilizes Mini-Fit Jr. connectors on both ends, providing a reliable and convenient connection solution. The tin plating on the connectors ensures excellent conductivity and corrosion resistance. It is ideal for applications requiring a pre-terminated cable with a specific length and gauge, simplifying assembly and reducing labor costs. The RoHS compliant design aligns with environmental regulations, making it suitable for a wide range of industrial and commercial uses.
MOLEX 2153421125 Mini-Fit Jr. Pre-Crimped Lead Specifications:
- overview: Off-the-Shelf Pre-Crimped Leads
- product_family: Cable Assemblies
- series: 215342
- application: Power, Wire-to-Wire Assembly
- configuration: Pre-crimped Lead Only
- connector_type: Mini-Fit Jr. Both Ends
- cable_length: 450.00mm
- circuits_loaded: 1
- color_resin: Black
- material_metal: Brass
- plating_mating: Tin
- plating_termination: Tin
- net_weight: 10.112/g
- packaging_type: Bag Single Ended
- termination_interface_style: Crimp or Compression
- wire_insulation_diameter: 1.80-3.10mm
- wire_size_awg: 16
- wire_cable_type: UL 1015
- current_max_per_contact: 9.0A
- voltage_max: 600V
- upc: 193264559930
- elv: Not Relevant
- rohs: Compliant
- reach_svhc: Not Contained
- halogen_free_status: Not Low-Halogen
