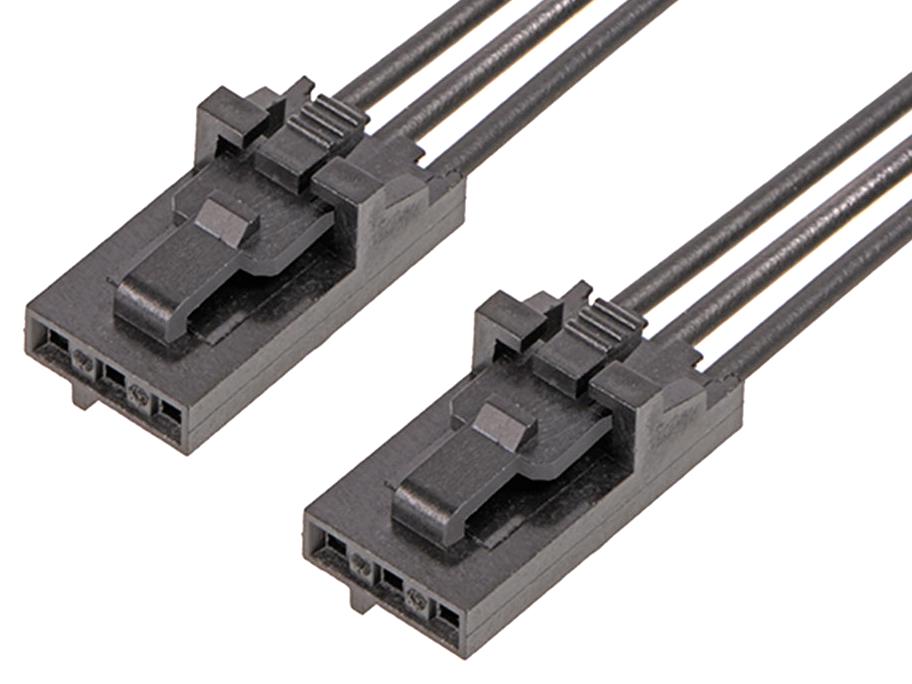

MOLEX 2162701030 Stackable Cable Assembly
Off-the-shelf stackable linear positive lock cable assemblies designed for versatile use in prototyping, industrial, automotive, and networking applications. These connectors support termination styles like crimp and FFC, featuring two independent contacts for redundancy, ensuring reliable electrical connections in demanding environments. The housings are low-profile and stackable, available in vertical and right-angle configurations for flexible assembly. Certified by UL and CSA, rated up to 600V and 3A, with durable tin-plated contacts and operating temperatures from -40°C to +105°C, providing long-term performance across various industrial and consumer electronics.
MOLEX 2162701030 Stackable Cable Assembly Specifications:
- Connector Type: SL Female-to-SL Female
- Cable Length: 50.00mm
- Number of Circuits: 3
- Color - Resin: Black
- Gender: Female-Female
- Lock to Mating Part: Yes
- Material - Metal: Phosphor Bronze
- Material - Plating Mating: Tin
- Material - Plating Termination: Tin
- Material - Resin: Polyester Alloy
- Net Weight: 2.060g
- Number of Rows: 1
- Packaging Type: Bag
- Pitch - Mating Interface: 2.54mm
- Termination Interface: Style: Crimp or Compression
- Wire Insulation Diameter: Max 1.63mm
- Wire Size AWG: 22
- Wire/Cable Type: Discrete Wire Assembly
- Current - Maximum per Contact: 3.0A
- Voltage - Maximum: 600V AC/DC
- Operating Temperature Range: -40°C to +105°C
- Certifications: UL 11028, CSA (LR19980)
Buy the Buy Molex Cable Assemblies Part Number 2162701030 Online
Purchase the Molex stackable cable assembly online today for versatile, reliable electrical connections suitable for prototyping, industrial, automotive, and networking applications. Designed with positive lock features, these assemblies support multiple termination styles including crimp and FFC, ensuring redundancy and long-term durability. Rated up to 600V and 3A, with tin-plated contacts and operating temperatures from -40°C to +105°C, they provide a low-profile, flexible solution. Easy to install, certified by UL and CSA, making them ideal for demanding environments and continuous use.
Buy Molex 2162701030 now and experience reliable, high-performance cable assemblies for industrial and consumer electronics.
Frequently Asked Questions
Where can I buy MOLEX 2162701030?
You can click on the BUY or RFQ button to purchase 2162701030 from an authorized MOLEX distributor.
How do I troubleshoot issues or seek technical support for part 2162701030?
You can download the 2162701030 datasheet or visit the MOLEX website for support.
Who is the manufacturer of 2162701030?
MOLEX
