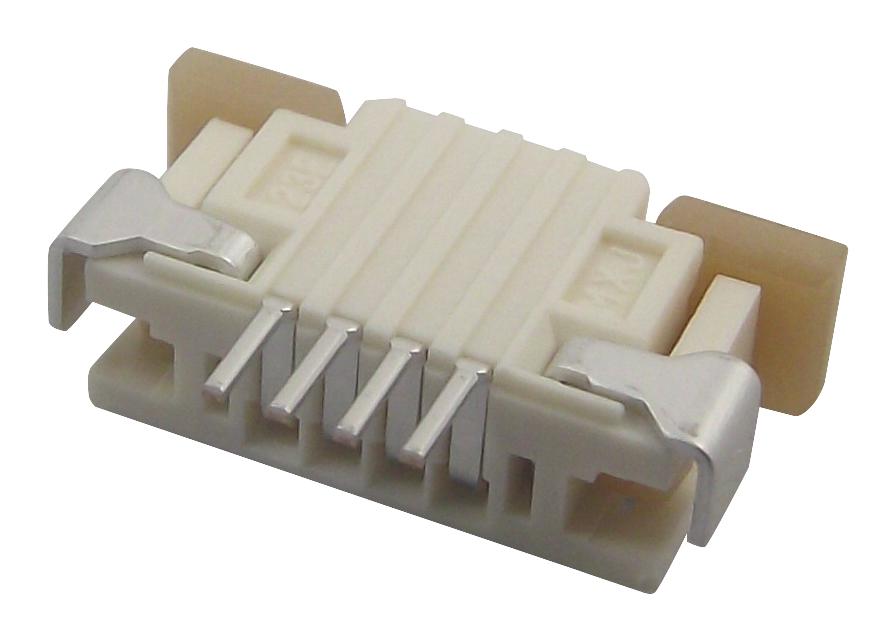

MOLEX 522711379 FFC FPC Connector
The Molex Easy-On FFC/FPC Connector series offers reliable, cost-effective connections for flexible flat cables and flexible printed circuits. Featuring a 1.00mm pitch, right-angle bottom contact design, and 13 circuits, it is ideal for compact electronic assemblies. Made with phosphor bronze contacts plated in tin-bismuth for enhanced durability, and a nylon body rated for operating temperatures from -40°C to +85°C. This surface-mount connector ensures secure PCB mounting, high mating cycle durability, and compliance with RoHS, UL, and CSA standards, making it suitable for various industrial and consumer electronic applications.
MOLEX 522711379 FFC FPC Connector Specifications:
- Pitch: 1.00mm
- Number of Circuits: 13
- Contact Material: Phosphor Bronze
- Contact Plating: Tin-Bismuth
- Housing Material: Nylon
- Mated Height: 3.00mm
- Color - Resin: Natural
- Durability: 30 mating cycles
- Operating Temperature Range: -40°C to +85°C
- Current Capacity: 0.5A per contact
- Maximum Voltage: 50V AC/DC
- Flammability: 94V-0
- Actuator Type: Slider
- Electrical Certification: UL, CSA
- Packaging: Embossed Tape on Reel
- Wire/Cable Type: FFC/FPC
Buy the Molex 522711379 – Reliable FFC/FPC Connector for Industrial Applications
Purchase the Molex FFC FPC connector online today. Designed for reliable, high-quality connections in electronics, this 13-circuit, 1.00mm pitch connector features a right-angle bottom contact, surface-mount design, and robust materials. Perfect for compact device assembly, it offers excellent durability with 30 mating cycles, operating safely from -40°C to +85°C. RoHS, UL, and CSA compliant, ensuring safety and environmental standards. Order now for dependable performance in your electronic projects and manufacturing needs.
Get Molex 522711379 today—built for precision and long-lasting durability in electronic assemblies.
Frequently Asked Questions
Where can I buy MOLEX 522711379?
You can click on the BUY or RFQ button to purchase 522711379 from an authorized MOLEX distributor.
How do I troubleshoot issues or seek technical support for part 522711379?
You can download the 522711379 datasheet or visit the MOLEX website for support.
Who is the manufacturer of 522711379?
MOLEX
