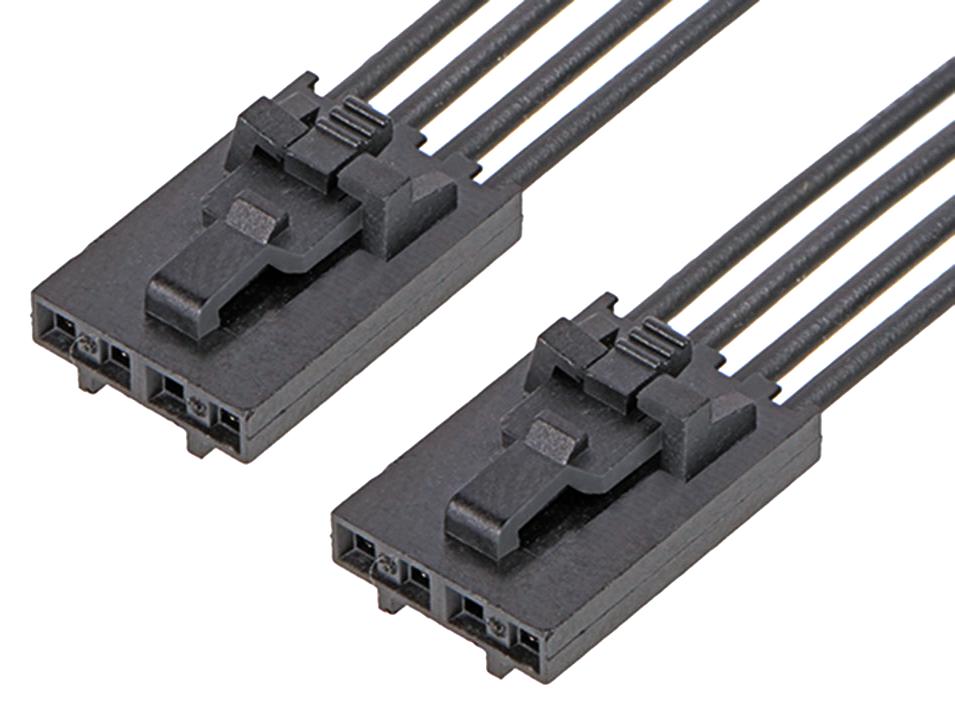

MOLEX 2162701041 Stackable Cable Assembly
This off-the-shelf stackable linear positive lock discrete cable assembly is designed for versatile prototyping and production. Supporting multiple termination styles like crimp, FFC, and IDT, it ensures flexible connection options. The connector features two independent contact points for redundancy, and a CPA lock secures connections to prevent disconnection under vibration. It includes female-to-female configurations, split-peg PCB headers for stability, and low-profile, stackable housings with vertical and right-angle headers. Rated up to 600V AC/DC, 3A, with a polyester alloy housing, phosphor bronze contacts, operating from -40°C to +105°C, supporting 25 mating cycles.
MOLEX 2162701041 Stackable Cable Assembly Specifications:
- Connector Type: Stackable, positive lock
- Configuration: Female-to-Female, or with PCB headers
- Contact Material: Phosphor bronze
- Contact Finish: Tin (Sn) plated
- Housing Material: Polyester alloy
- Cable Length: 100.00mm
- Number of Circuits: 4
- Rated Voltage: Up to 600V AC/DC
- Rated Current: 3A
- Operating Temperature Range: -40°C to +105°C
- Number of Mating Cycles: Up to 25
- Termination Styles Supported: Crimp, FFC, IDT
- Locking Mechanism: CPA locking feature
- Color: Black
- Physical Dimensions: Length 100.00mm, pitch 2.54mm, wire Max Diameter 1.63mm
Buy the Buy Molex SL REACH SVHC Part Number 2162701041 Online
Purchase the Molex stackable cable assembly online for reliable prototyping and industrial applications. Featuring positive lock mechanisms, dual independent contacts, and versatile termination options, it ensures secure, redundant connections. Rated for up to 600V and 3A, it supports demanding environments with operating temperatures from -40°C to +105°C and up to 25 mating cycles. Ideal for signal and power applications, the assembly's durable polyester housing and tin-plated phosphor bronze contacts provide longevity and consistent performance for your engineering projects.
Order your Molex Series216270 2162701041 today and ensure reliable, versatile connections with robust locking features for your industrial projects.
Frequently Asked Questions
Where can I buy MOLEX 2162701041?
You can click on the BUY or RFQ button to purchase 2162701041 from an authorized MOLEX distributor.
How do I troubleshoot issues or seek technical support for part 2162701041?
You can download the 2162701041 datasheet or visit the MOLEX website for support.
Who is the manufacturer of 2162701041?
MOLEX
