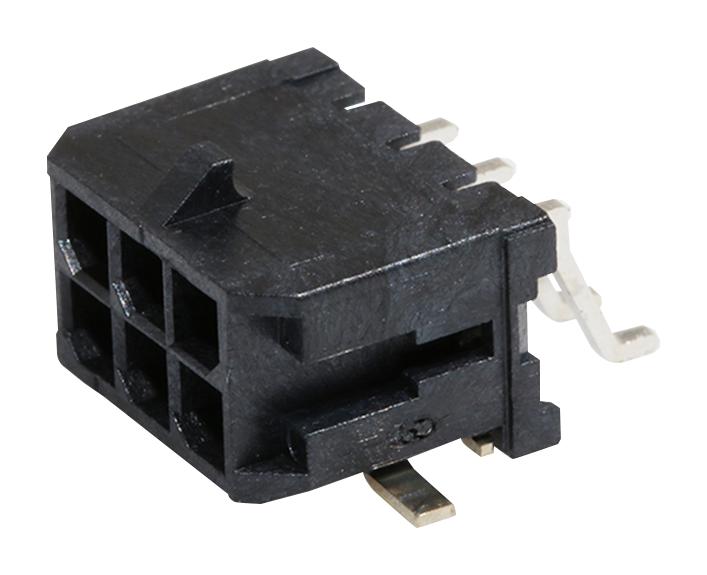

MOLEX 430450610 Power Connector
This Molex Micro-Fit 3.0 right-angle header features a 3.00mm pitch, dual row, 6 circuits, with solder tab and gold plating, suitable for high-temperature applications. Manufactured from flame-resistant thermoplastic with a glow-wire ignition temperature of at least 775°C, it conforms to IEC 60695-2-13 and IEC 60695-2-12 standards for safety and fire resistance. Its robust design supports up to 30 mating cycles, operates within -40°C to +105°C, and is UL and CSA certified, making it ideal for power and wire-to-board connections in demanding environments.
MOLEX 430450610 Power Connector Specifications:
- Pitch: 3.00mm
- Number of Circuits: 6
- Color: Black
- Material - Resin: High temperature thermoplastic
- Material - Metal: Brass
- Plating Mating: Gold
- Plating Termination: Tin
- Maximum Current per Contact: 8.5A
- Maximum Voltage: 600V
- Operating Temperature Range: -40°C to +105°C
- Durability (Mating Cycles): 30
- Flammability: UL 94V-0
- Glow-Wire Capable: Yes
- Mated Height: 10.29mm
- Surface Mount: Yes
- Dimensions: Length varies with model, typical contact size 0.381mm, max height 10.29mm
- Agency Certification: UL, CSA
Buy the Molex Series Micro-Fit 3.0 Power Connector: 430450610
Secure your electronic projects with the Molex Micro-Fit 3.0 power connector. Featuring a 3.00mm pitch and gold-plated contacts, it’s designed for durability and high-temperature environments. This UL and CSA certified connector supports up to 8.5A and 600V, with a robust construction supporting 30 mating cycles. Ideal for power, wire-to-board applications, and safety compliance. Order online today to ensure your components meet industry standards for quality, reliability, and performance in demanding conditions.
Buy Molex 430450610 now and experience unmatched reliability and high performance in power and wire-to-board applications.
