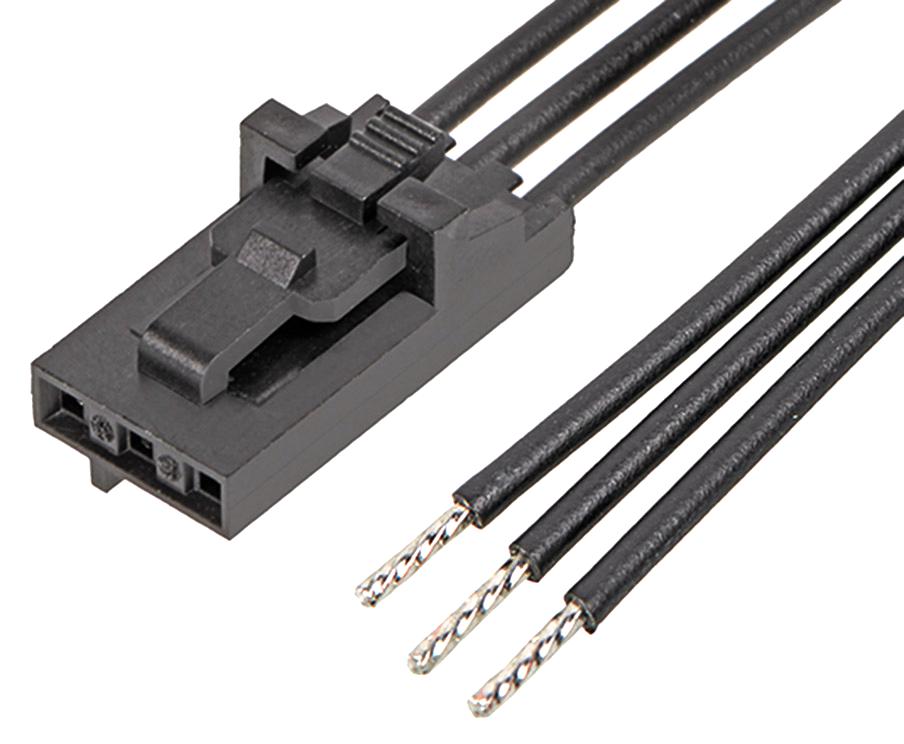

MOLEX 2162711032 Stackable Cable Assembly
This positive lock stackable linear cable assembly is designed for both prototyping and mass production, featuring discrete wire crimp, FFC, and IDT terminations. With two independent contact points for optimal electrical performance and a lock to prevent disconnection during vibrations, it ensures secure connections in various environments. Suitable for consumer, industrial, automotive, data, medical, and telecom applications, its low-profile, stackable design accommodates vertical and right-angle headers. Made with polyester alloy housing, it supports up to 600V, 3A, and operates between -40°C and +105°C for up to 25 mating cycles.
MOLEX 2162711032 Stackable Cable Assembly Specifications:
- Housing Material: Polyester Alloy
- Contacts Material: Phosphor Bronze with Tin Plating
- Voltage Rating: 600V AC/DC
- Current Rating: 3A
- Temperature Range: -40°C to +105°C
- Number of Mating Cycles: Up to 25
- Connection Type: Discrete Wire, FFC, IDT
- Locking Mechanism: Position assurance lock
- Rated for high-vibration environments
- Profile: Low-profile, stackable design
- Supports vertical and right-angle headers
- Application: Consumer, industrial, automotive, data, medical
- Operating Environment: Wide range, reliable in harsh conditions
Buy the Molex Series SL Cable Assembly: 2162711032
Order the Molex stackable cable assembly 2162711032 online today and enjoy reliable, high-performance connections rated for up to 600V and 3A. Its versatile design supports various termination styles including crimp, FFC, and IDT, making it ideal for consumer, industrial, automotive, and telecom applications. The assembly features a robust locking mechanism to prevent disconnection during vibration and is built with durable polyester alloy housing. Operating between -40°C and +105°C, it ensures dependable performance over up to 25 mating cycles, enhancing your project's reliability and flexibility.
Get Molex 2162711032 today—designed for secure, high-performance wire-to-wire and wire-to-board connections.
Frequently Asked Questions
Where can I buy MOLEX 2162711032?
You can click on the BUY or RFQ button to purchase 2162711032 from an authorized MOLEX distributor.
How do I troubleshoot issues or seek technical support for part 2162711032?
You can download the 2162711032 datasheet or visit the MOLEX website for support.
Who is the manufacturer of 2162711032?
MOLEX
