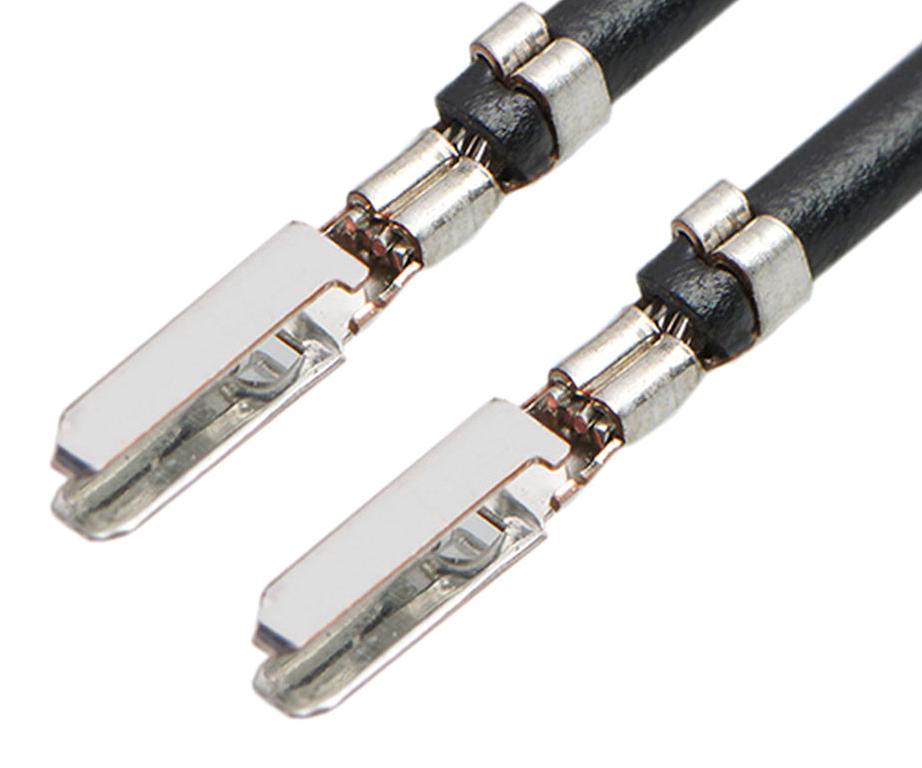

MOLEX 2157111112 CLIK-Mate Pre-Crimped Lead
The MOLEX 215711-1112 is a pre-crimped lead assembly within the CLIK-Mate series, ideal for signal transmission in wire-to-board applications. This assembly provides a convenient, pre-terminated solution, eliminating the need for on-site crimping. The tin-plated connectors ensure excellent conductivity and corrosion resistance, while the black resin color offers a clean and professional appearance. It is RoHS compliant and suitable for various industrial and commercial applications requiring secure and efficient electrical connections.
MOLEX 2157111112 CLIK-Mate Pre-Crimped Lead Specifications:
- overview: Off-the-Shelf Pre-Crimped Leads
- application: Signal, Wire-to-Board Assembly
- configuration: Pre-crimped Lead Only
- connector_to_connector: CLIK-Mate-to-CLIK-Mate
- cable_length: 150.00mm
- circuits_loaded: 1
- color_resin: Black
- material_metal: Copper Alloy
- plating_mating: Tin (Sn)
- plating_termination: Tin (Sn)
- net_weight: 0.385/g
- packaging_type: Bag
- plating_min_mating: 0.406µm
- plating_min_termination: 0.406µm
- single_ended: Yes
- termination_interface_style: Crimp or Compression
- wire_insulation_diameter: 0.78-1.28mm
- wire_size_awg: 26
- wire_cable_type: UL 10002
- current_maximum_per_contact: 2.0A
- voltage_maximum: 100V AC (RMS)/DC
- elv_compliance: Not Relevant
- rohs_status: Compliant
- china_rohs: REACH SVHC Not Contained
- halogen_free: Not Low-Halogen
- use_with: CLIK-Mate Housing 502578, 503149
- sales_drawing: 2157111111-000
Buy the 215711-1112 MOLEX CLIK-Mate Pre-Crimped Lead | myMectronic
Purchase the genuine MOLEX 215711-1112 Pre-Crimped Lead securely and efficiently online.
Buy Now
Frequently Asked Questions
Where can I buy MOLEX 2157111112?
You can click on the BUY or RFQ button to purchase 2157111112 from an authorized MOLEX distributor.
How do I troubleshoot issues or seek technical support for part 2157111112?
You can download the 2157111112 datasheet or visit the MOLEX website for support.
Who is the manufacturer of 2157111112?
MOLEX
