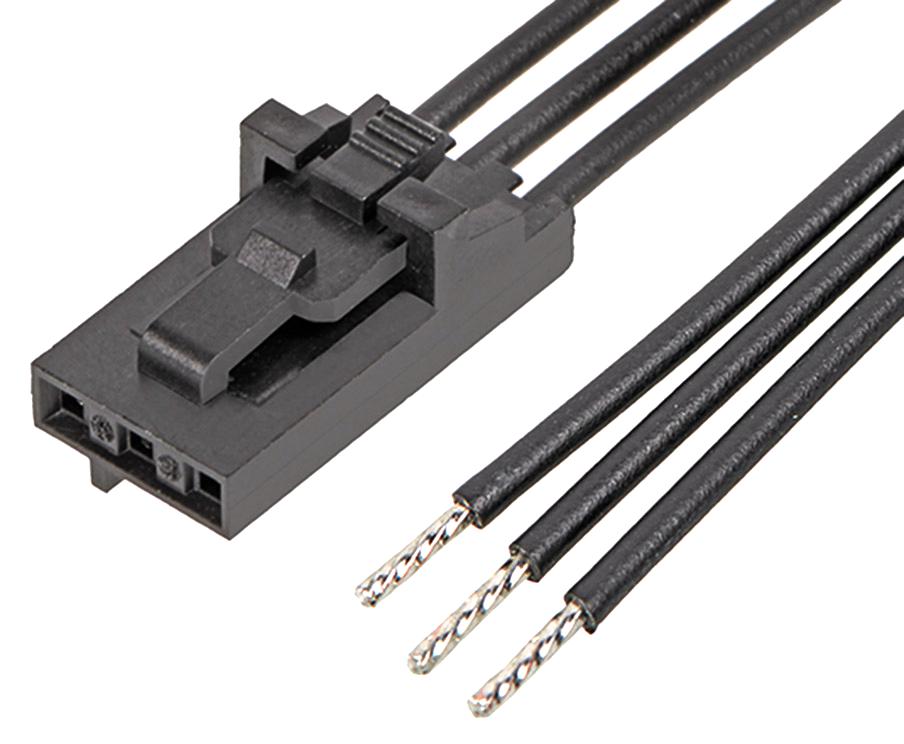

MOLEX 2162711034 Stackable Cable Assembly
This stackable linear positive lock cable assembly supports diverse applications including consumer, industrial, automotive, data, telecom, and medical fields. It features a secure locking interface, corrosion-resistant contacts, and flexible termination styles such as crimp and IDT. The assembly employs a polyester alloy housing, phosphor bronze contacts with tin plating, and operates at voltages up to 600V AC/DC and currents up to 3A. Designed for durability, it withstands up to 25 mating cycles across a temperature range of -40°C to +105°C, ensuring reliable performance in high-vibration environments. UL and CSA compliant.
MOLEX 2162711034 Stackable Cable Assembly Specifications:
- Cable Length: 600.00 mm
- Number of Circuits: 3
- Color: Black
- Gender: Female-Pigtail
- Material - Metal: Phosphor Bronze
- Material - Plating Mating: Tin
- Material - Plating Termination: Tin
- Material - Resin: Polyester Alloy
- Current - Maximum per Contact: 3A
- Voltage - Maximum: 600V AC/DC
- Operating Temperature Range: -40°C to +105°C
- Durability: Up to 25 mating cycles
- Contact Pitch: 2.54 mm
- Termination Style: Crimp or Compression
- Housing Material: Polyester Alloy
- Locking System: Position assurance lock
- Compliance: UL (E29179), CSA (LR19980), RoHS, China RoHS
Buy the Molex Series SL Cable Assembly: 2162711034
Order the Molex 2162711034 stackable cable assembly online today for a secure, high-reliability connection solution suitable for industrial, automotive, and medical applications. Featuring a positive lock, female-to-pigtail interface, and robust construction, this assembly ensures long-term electrical stability. With a flexible crimp or compression termination style, polyester alloy housing, and corrosion-resistant tin-plated contacts, it supports voltage up to 600V AC/DC and currents up to 3A. Designed to withstand harsh environments and multiple mating cycles, making it an excellent choice for critical electronic systems.
Buy Molex 2162711034 now and experience unmatched reliability and performance with secure locking and high durability for your electronic connections.
Frequently Asked Questions
Where can I buy MOLEX 2162711034?
You can click on the BUY or RFQ button to purchase 2162711034 from an authorized MOLEX distributor.
How do I troubleshoot issues or seek technical support for part 2162711034?
You can download the 2162711034 datasheet or visit the MOLEX website for support.
Who is the manufacturer of 2162711034?
MOLEX
