MOLEX 2005290050 FFC FPC Connector
The 1.00mm pitch easy-on FFC/FPC connector offers a reliable surface mount solution with a right-angle, ZIF design, and single bottom contact configuration. Suitable for applications requiring minimal height clearance, it supports up to 5 circuits with a maximum of 5 loaded circuits, and is designed for durability with up to 25 mating cycles. Made from liquid crystal polymer and phosphor bronze, it features tin-silver-bismuth plating, operating from -40°C to +85°C, and conforms to RoHS and ESLV standards for environmental safety and compliance.
MOLEX 2005290050 FFC FPC Connector Specifications:
- Pitch - Mating Interface: 1.00mm
- Number of Circuits (Loaded): 5
- Number of Circuits (Maximum): 5
- Mated Height: 1.90mm
- Material - Metal: Phosphor Bronze
- Material - Plating Mating: Tin-Silver-Bismuth
- Material - Plating Termination: Tin-Silver-Bismuth
- Material - Resin: Liquid Crystal Polymer
- Operating Temperature Range: -40°C to +85°C
- Current - Maximum per Contact: 0.5A
- Voltage - Maximum: 50V AC/DC
- Durability (Mating Cycles Max): 25
- Surface Mount Compatible: Yes
- Actuator Type: Bezel (Black Actuator)
- Orientation: Right-Angle
- Packaging Type: Embossed Tape on Reel
- Color - Resin: Beige
- Net Weight: 93.770 mg

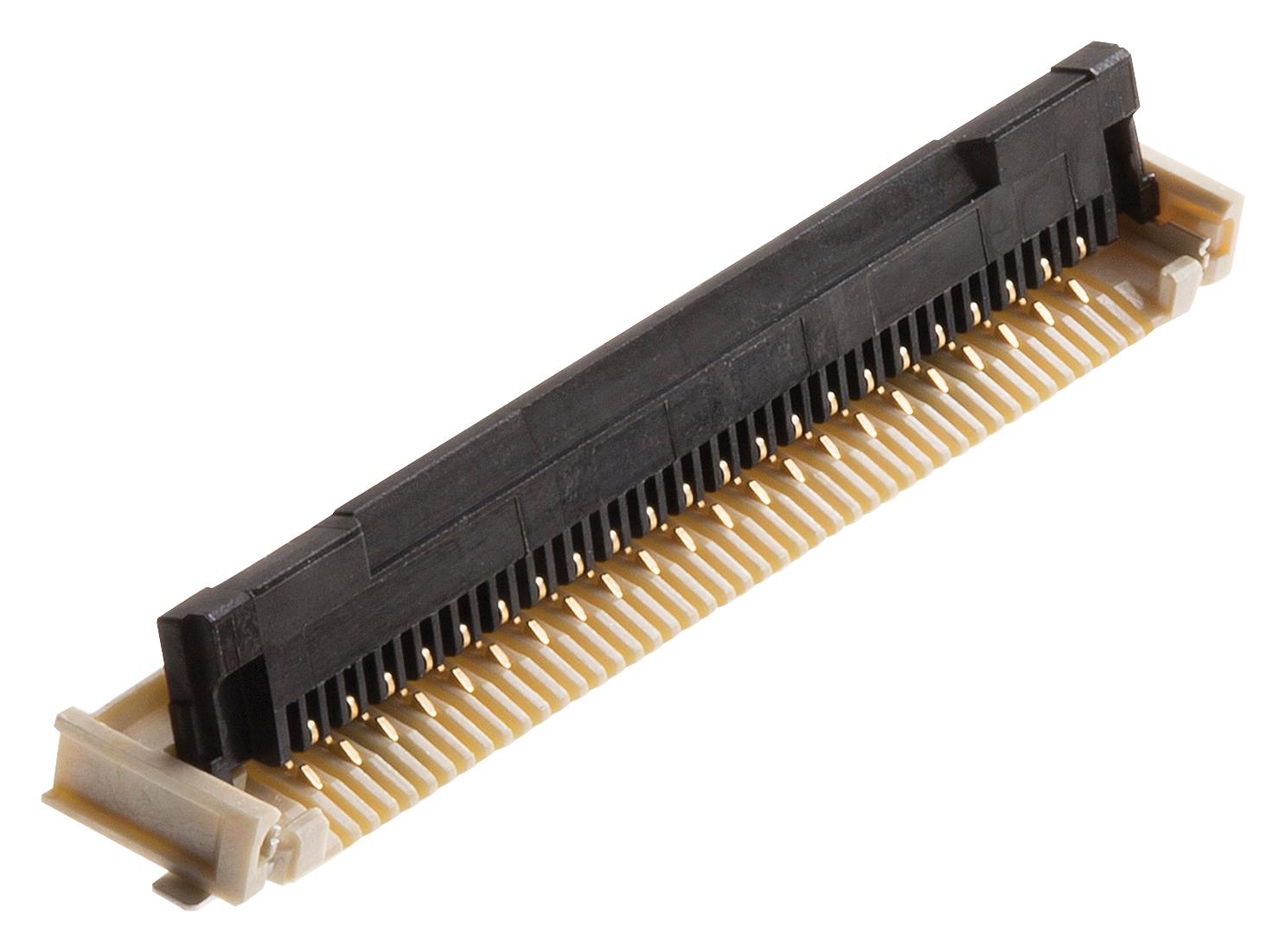

Buy the Buy Molex FFC-FPC Connector Part Number 2005290050 Online
Purchase the Molex FFC FPC Connector Part Number 2005290050 online today. Designed for compact, high-density applications, this connector features a 1.00mm pitch, right-angle ZIF mechanism, and surface mount compatibility. Made of durable liquid crystal polymer with tin-silver-bismuth plating, it ensures reliable contact and long-lasting performance. Operating from -40°C to +85°C, it supports up to 5 circuits with a maximum of 25 mating cycles. Perfect for electronics requiring precise connections with environmental compliance and high durability.
Get Molex 2005290050 today—built for durability, reliability, and easy surface mount installation with high circuit capacity and excellent environmental stability.
Frequently Asked Questions
Where can I buy MOLEX 2005290050?
You can click on the BUY or RFQ button to purchase 2005290050 from an authorized MOLEX distributor.
How do I troubleshoot issues or seek technical support for part 2005290050?
You can download the 2005290050 datasheet or visit the MOLEX website for support.
Who is the manufacturer of 2005290050?
MOLEX
