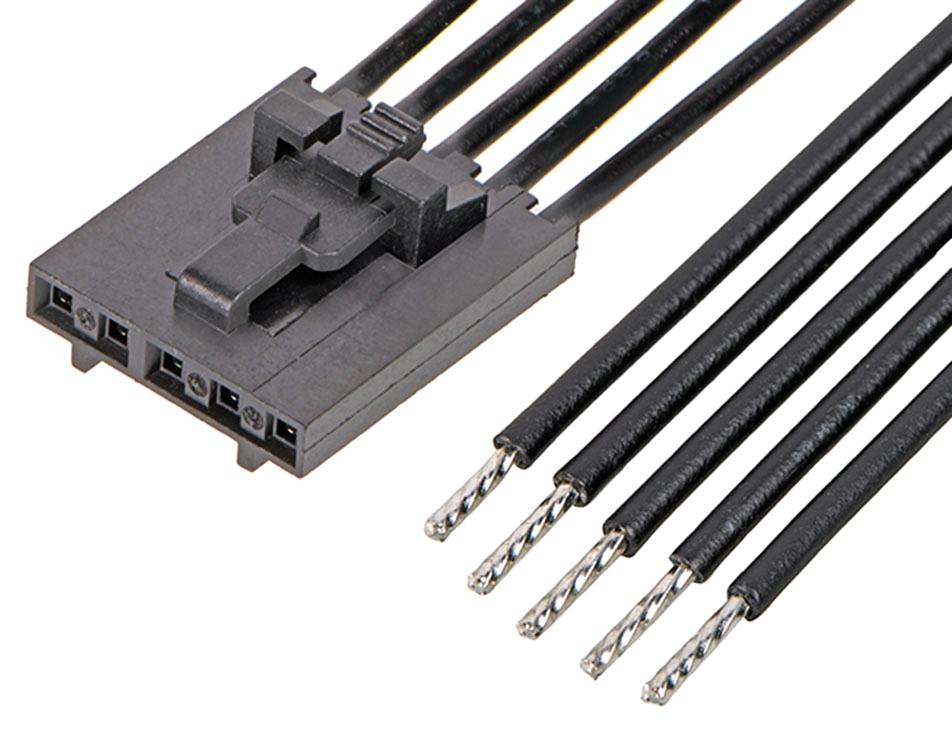

MOLEX 2162711054 Stackable Signal Cable
This versatile off-the-shelf stackable linear positive lock cable assembly supports prototyping and mass production in industries such as consumer, industrial, automotive, medical, and telecommunications. It features dual independent contacts for improved electrical performance and a terminal position lock for high-vibration reliability. Designed with low-profile, stackable housing, it accommodates vertical and right-angle headers. Made from polyester alloy with phosphor bronze contacts plated in tin, it withstands temperatures from -40°C to +105°C, rated for 25 mating cycles, and operates at 600V AC/DC with a maximum current of 3A, meeting UL and CSA standards.
MOLEX 2162711054 Stackable Signal Cable Specifications:
- Connector Type: Discrete Wire Assembly
- Series: 216271
- Application: Signal, Wire-to-Board, Wire-to-Wire
- Assembly Configuration: Connector to Connector, Single Ended
- Cable Length: 600.00mm
- Number of Circuits: 5
- Color - Resin: Black
- Gender: Female-Pigtail
- Lock to Mating Part: Yes
- Material - Metal: Phosphor Bronze
- Material - Plating Mating: Tin
- Material - Plating Termination: Tin
- Material - Resin: Polyester Alloy
- Net Weight: 14.723 grams
- Number of Rows: 1
- Packaging Type: Bag
- Pitch - Mating Interface: 2.54mm
- Termination Interface: Style: Crimp or Compression
- Wire Insulation Diameter: 1.63mm max.
- Wire Size AWG: 22
- Wire/Cable Type: Discrete Wire
- Current - Maximum per Contact: 3.0A
- Voltage - Maximum: 600V AC/DC
- Temperature Range: -40°C to +105°C
- Certifications: UL 11028, CSA Certified
- Halogen-Free: No
- RoHS Compliant: Yes
- REACH SVHC: Not Contained
Buy the Molex Series 216271 Signal Cable Assembly: 2162711054
Purchase the Molex Series 216271 signal cable assembly online today and benefit from high electrical reliability, robust construction, and versatile terminations. Designed for prototyping and mass production, it features dual contact points, a terminal lock, and high-temperature tolerance. Suitable for automotive, industrial, and telecommunications fields, this assembly ensures secure connections with UL and CSA compliance. Its flexible, compact design supports vertical and right-angle headers, making it ideal for demanding environments where dependable performance is critical. Order now to ensure uninterrupted connectivity and quality performance.
Buy Molex Series 216271 600V 3A cable assembly now and ensure reliable connectivity in industrial and automotive applications with high-performance features.
Frequently Asked Questions
Where can I buy MOLEX 2162711054?
You can click on the BUY or RFQ button to purchase 2162711054 from an authorized MOLEX distributor.
How do I troubleshoot issues or seek technical support for part 2162711054?
You can download the 2162711054 datasheet or visit the MOLEX website for support.
Who is the manufacturer of 2162711054?
MOLEX
