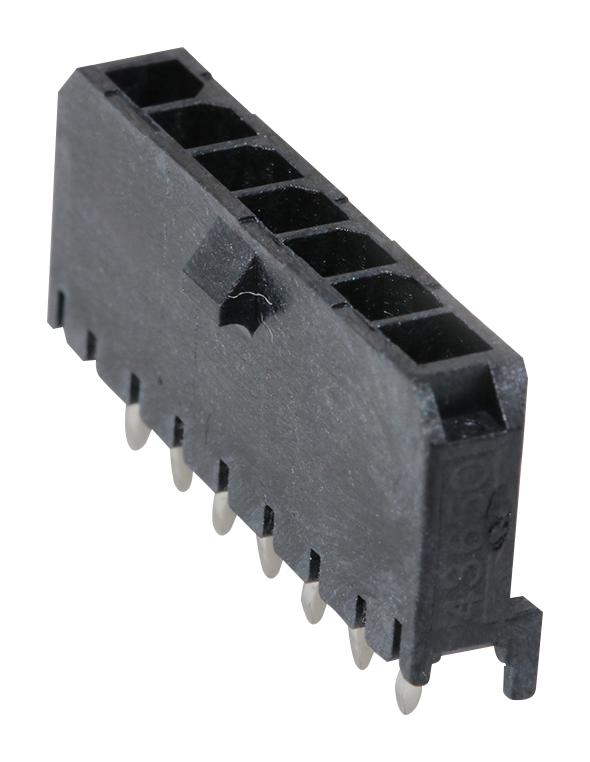

MOLEX 436500716 Micro-Fit 3.0 Vertical Header
The MOLEX 43650-0716 is a Micro-Fit 3.0 vertical header, part of the 43650 product family. This header is designed for wire-to-board connections and offers a robust solution for various applications. It features 7 circuits arranged in a single row, a 3.00mm pitch, and is polarized to the PCB for proper alignment. The header is constructed with a high-temperature thermoplastic resin and brass with gold plating on the mating contacts and tin plating on the termination contacts. It is glow-wire capable, meeting specific flammability requirements, and is RoHS compliant, ensuring environmental responsibility. Suitable for applications requiring secure and reliable power connections.
MOLEX 436500716 Micro-Fit 3.0 Vertical Header Specifications:
- Product Family: PCB Headers
- Application: Power, Wire-to-Board
- Circuits (Loaded): 7
- Circuits (maximum): 7
- Color - Resin: Black
- Durability (mating cycles max): 30
- Flammability: 94V-0
- Glow-Wire Capable: Yes
- Mated Height: 17.27mm
- Material - Metal: Brass
- Material - Plating Mating: Gold
- Material - Plating Termination: Tin
- Material - Resin: High Temperature Thermoplastic
- Net Weight: 1.164/g
- Number of Rows: 1
- Orientation: Vertical
- PCB Locator: Yes
- PCB Retention: Yes
- PCB Thickness - Recommended: 1.60mm
- Pitch - Mating Interface: 3.00mm
- Plating min - Mating: 0.381µm
- Plating min - Termination: 2.540µm
- Polarized to PCB: Yes
- Shrouded: Fully
- Stackable: No
- Surface Mount Compatible (SMC): Yes
- Temperature Range - Operating: -40° to +105°C
- Termination Interface: Style: Through Hole - Kinked Pin
- Current - Maximum per Contact: 8.5A
- Voltage - Maximum: 600V
- Lead-freeProcess Capability: SMC&WAVE
- Max. Cycles at Max. Process Temperature: 003
- Process Temperature max. C: 260
Buy the 43650-0716 MOLEX Micro-Fit 3.0 Vertical Header | myMectronic
Purchase the MOLEX 43650-0716 Micro-Fit 3.0 Vertical Header securely and reliably online.
Buy Now
Frequently Asked Questions
Where can I buy MOLEX 436500716?
You can click on the BUY or RFQ button to purchase 436500716 from an authorized MOLEX distributor.
How do I troubleshoot issues or seek technical support for part 436500716?
You can download the 436500716 datasheet or visit the MOLEX website for support.
Who is the manufacturer of 436500716?
MOLEX
