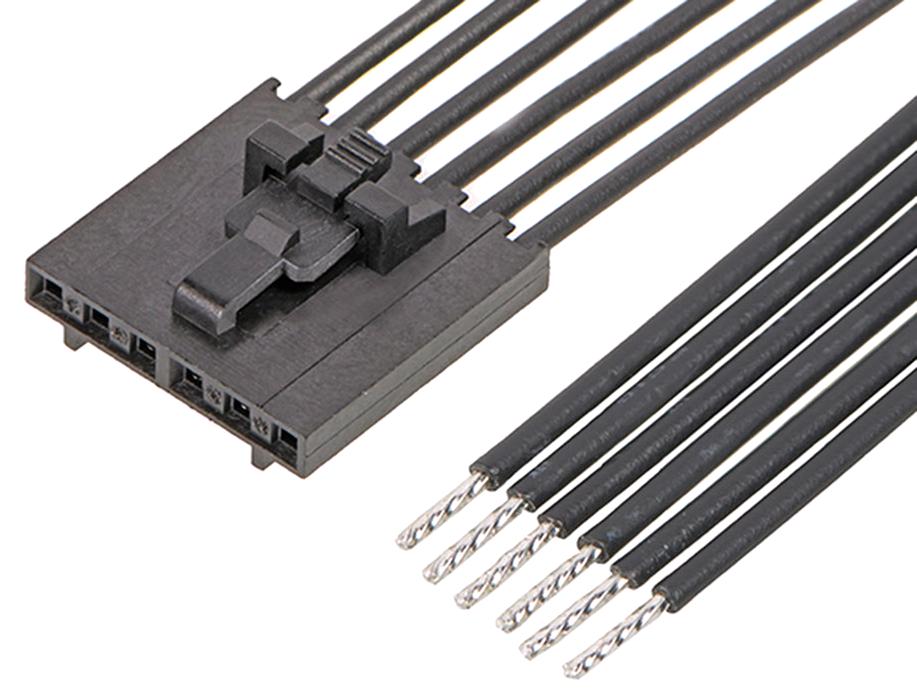

MOLEX 2162711063 Signal Connector
This off-the-shelf stackable linear positive lock cable assembly supports prototyping and mass production across various industries including automotive, consumer electronics, and telecommunications. Featuring discrete wire crimp, FFC, and IDT termination options, it provides two independent contact points for enhanced electrical performance and reliability. The connector includes a position assurance lock to prevent disengagement in high-vibration environments and is designed with a low-profile, stackable housing compatible with vertical and right-angle headers. Constructed with a polyester alloy housing, phosphor bronze contacts with tin plating, it operates reliably from -40°C to +105°C, with a maximum voltage of 600V AC/DC and a current of 3A, making it versatile and dependable.
MOLEX 2162711063 Signal Connector Specifications:
- Cable Length: 300.00mm
- Circuits (Loaded): 6
- Color - Resin: Black
- Gender: Female-Pigtail
- Material - Metal: Phosphor Bronze
- Material - Plating Mating: Tin
- Material - Plating Termination: Tin
- Material - Resin: Polyester Alloy
- Net Weight: 9.544 grams
- Number of Rows: 1
- Packaging Type: Bag
- Pitch - Mating Interface: 2.54mm
- Termination Interface: Style: Crimp or Compression
- Wire Insulation Diameter: 1.63mm max.
- Wire Size AWG: 22
- Electrical Current - Maximum per Contact: 3.0A
- Voltage - Maximum: 600V AC/DC
- Temperature Range: -40°C to +105°C
- Mating Cycles: Up to 25
- Certifications: UL Listed, CSA Certified
- Material Housing: Polyester Alloy
- Contact Material: Phosphor Bronze
- Contact Plating: Tin
Buy the Molex Series SL Signal Connector: 2162711063
Invest in the Molex Series SL 2162711063 offline sealable, stackable connector designed for durable, high-performance applications in automotive, industrial, and telecommunications sectors. Its robust construction includes a polyester alloy housing with phosphor bronze contacts, tin-plated for corrosion resistance, ensuring long-term reliability under harsh conditions. The connector supports 600 volts and 3 amps, with a compact, low-profile design suitable for a variety of vertical and right-angle header configurations. Enjoy easy installation, high vibration resistance, and up to 25 mating cycles, making it an excellent choice for demanding projects.
Order your Molex Series SL 2162711063 today and secure high-quality, reliable connections for your industrial, automotive, or consumer electronics projects.
Frequently Asked Questions
Where can I buy MOLEX 2162711063?
You can click on the BUY or RFQ button to purchase 2162711063 from an authorized MOLEX distributor.
How do I troubleshoot issues or seek technical support for part 2162711063?
You can download the 2162711063 datasheet or visit the MOLEX website for support.
Who is the manufacturer of 2162711063?
MOLEX
