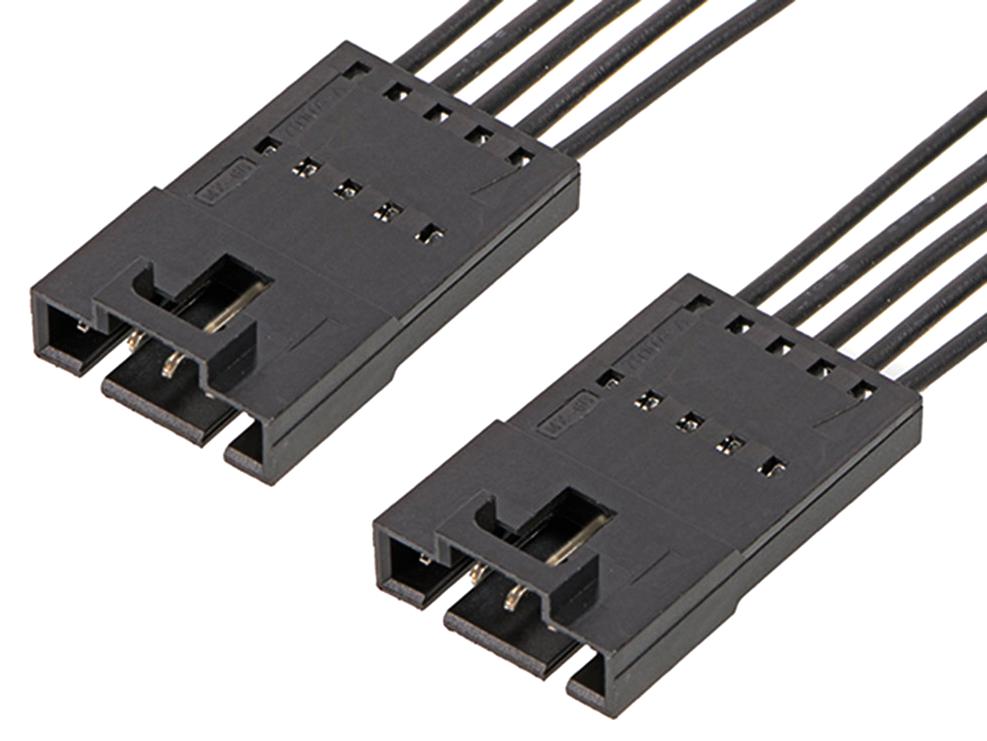

MOLEX 2162721050 Stackable Cable Assembly
This off-the-shelf stackable linear positive lock cable assembly offers versatile connectivity options suitable for prototyping and mass production across industries. It features independent contact points for enhanced electrical reliability, a secure connector position assurance lock, and supports multiple termination styles including crimp, FFC, and IDT. The durable polyester alloy housing and tin-plated phosphor bronze contacts ensure long-term performance. Capable of withstanding voltages up to 600V and currents up to 3A, it operates efficiently from -40°C to +105°C. This robust, stackable connector resists disengagement in high-vibration conditions, with testing for up to 25 insertion cycles, and is compliant with UL and CSA standards.
MOLEX 2162721050 Stackable Cable Assembly Specifications:
- Connector type: Discrete wire assembly with positive lock
- Configuration: Male-to-male, dual-ended connectors
- Length: 50.00mm
- Number of circuits: 5
- Housing material: Polyester alloy
- Contact material: Phosphor bronze
- Plating: Tin
- Color: Black
- Voltage rating: 600V AC/DC
- Current capacity: 3A per contact
- Temperature range: -40°C to +105°C
- Termination style: Crimp or compression
- Wire size: 22 AWG
- Insulation diameter: Max 1.63mm
- Rated insertion cycles: 25
- Compliance: UL (E29179), CSA (LR19980), RoHS, China RoHS
- Lock type: Connector position assurance (CPA)
- Applicable for high-vibration environments
- Back-compatibility with vertical and right-angle headers
Buy the Molex 2162721050 – Reliable Discrete Cable Assembly for Industrial Applications
Purchase the Molex 2162721050 stackable cable assembly online today and enjoy reliable connections with secure positive lock features, versatile termination options, and high durability for industrial, automation, and electronic projects. Engineered with a durable polyester alloy housing and tin-plated phosphor bronze contacts, this assembly supports up to 600V and 3A, ensuring safety and efficiency across temperature ranges from -40°C to +105°C. Its design includes independent contact points for improved electrical performance, a CPA lock for secure mating, and compatibility with various headers. Order now for fast delivery and reliable performance that meets UL and CSA standards!
Buy Molex 2162721050 now and experience unmatched reliability and performance in versatile industrial cable assembly solutions.
