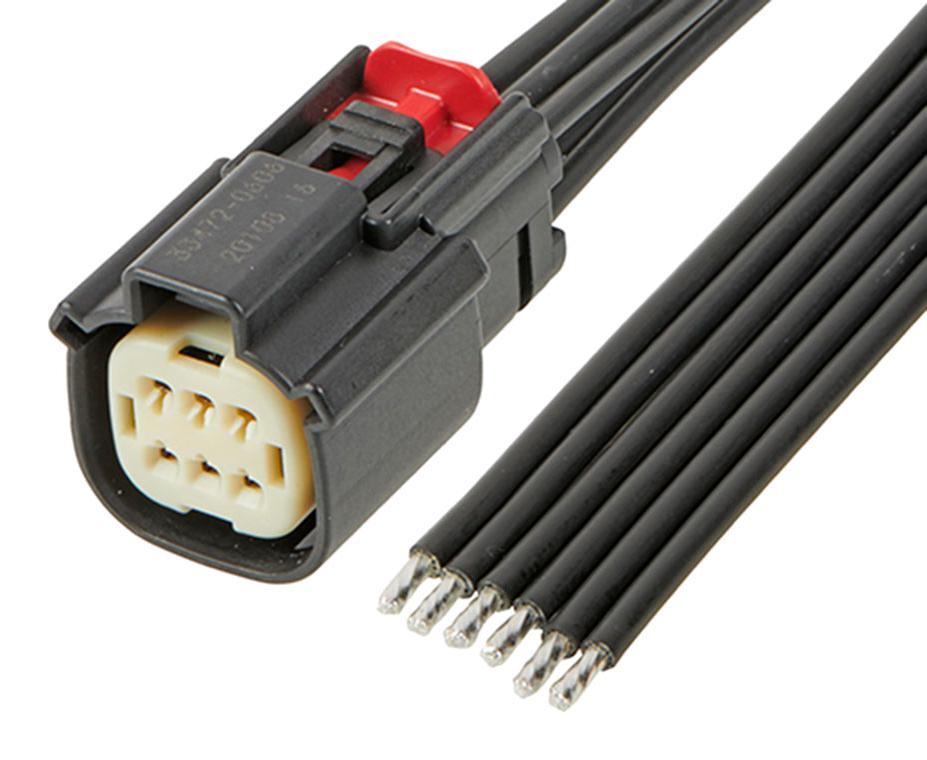

MOLEX 2162861061 MX150 Cable Assembly
The MOLEX 216286-1061 is a robust MX150 Female-to-Pigtail Off-the-Shelf (OTS) Cable Assembly designed for power, wire-to-board, and wire-to-wire applications. It offers a convenient pre-terminated solution with a 150mm length, 6 circuits, and tin plating on both mating and termination interfaces. Constructed with a high-performance alloy and SPS/Nylon resin, this assembly provides durability and reliable electrical connections. It is ideal for applications requiring a sealed and pre-configured cable assembly.
MOLEX 2162861061 MX150 Cable Assembly Specifications:
- overview: Off-the-Shelf Cable Assemblies
- application: Power, Wire-to-Board, Wire-to-Wire
- configuration: Single Ended
- connector_type: MX150-to-Pigtail
- cable_length: 150.00mm
- circuits_loaded: 6
- color: Black
- material_metal: High Performance Alloy (HPA)
- material_plating_mating: Tin (Sn)
- material_plating_termination: Tin (Sn)
- material_resin: SPS/Nylon
- net_weight: 324.100/g
- number_of_rows: 2
- packaging_type: Bag
- pitch_mating_interface: 3.50mm
- wire_insulation_diameter: 2.70mm max
- wire_size_awg: 14
- wire_cable_type: TXL Stranded
- current_max_per_contact: 22.0A
- voltage_max: 14V DC
- upc: 193264714629
- halogen_free_status: Low-Halogen
- reach_svhc: Not Contained
- mates_with: MX150 Sealed Dual Row Male Connector 33482
Buy the 216286-1061 MOLEX MX150 Cable Assembly | myMectronic
Purchase the MOLEX 216286-1061 cable assembly securely and conveniently online.
Buy Now
Frequently Asked Questions
Where can I buy MOLEX 2162861061?
You can click on the BUY or RFQ button to purchase 2162861061 from an authorized MOLEX distributor.
How do I troubleshoot issues or seek technical support for part 2162861061?
You can download the 2162861061 datasheet or visit the MOLEX website for support.
Who is the manufacturer of 2162861061?
MOLEX
