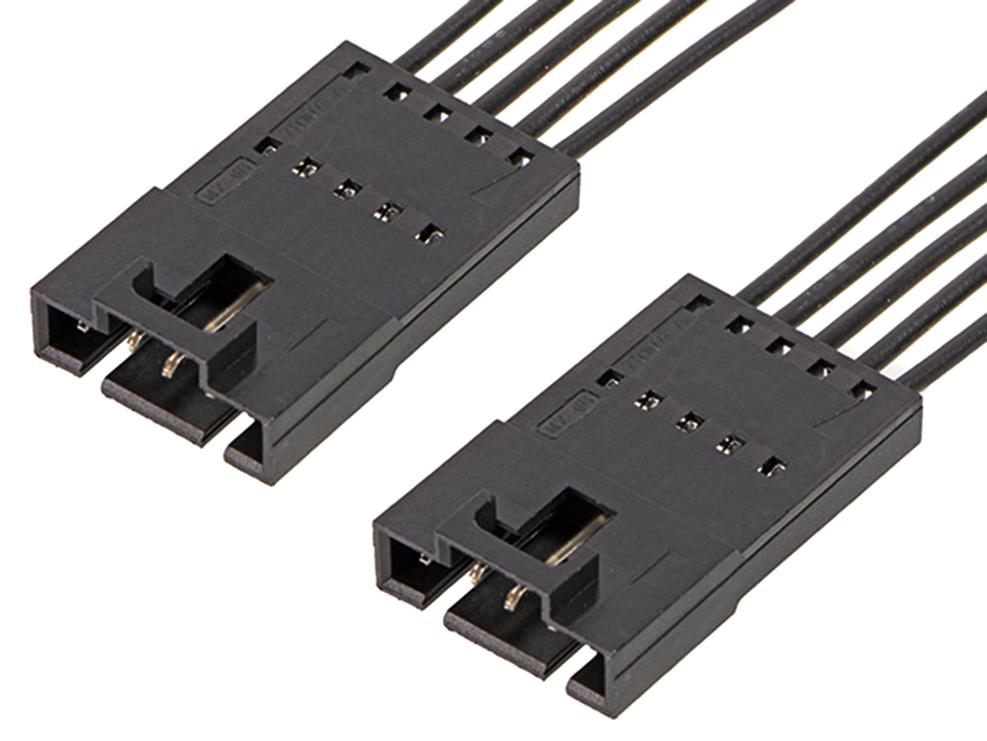

MOLEX 2162721051 Stackable Cable Assembly
This off-the-shelf stackable linear positive lock cable assembly is suitable for prototyping and manufacturing across various industries. It features dual contact points for reliable electrical performance, a position assurance lock to prevent disconnection in high-vibration environments, and supports multiple termination styles including crimp, FFC, and IDT. Rated for 600V AC/DC and 3A, it is housed in a durable polyester alloy with phosphor bronze contacts plated in tin. The low-profile, stackable design offers flexible configurations, operating from -40°C to +105°C for versatile industrial applications. It supports up to 25 mating cycles, meeting UL and CSA safety standards.
MOLEX 2162721051 Stackable Cable Assembly Specifications:
- Product Family: Cable Assemblies
- Application: Prototyping and manufacturing
- Assembly Configuration: Connector to Connector
- Cable Length: 100.00mm
- Circuits (Loaded): 5
- Color - Resin: Black
- Gender: Male-Male
- Lock to Mating Part: Yes
- Material - Metal: Phosphor Bronze
- Material - Plating Mating: Tin
- Material - Plating Termination: Tin
- Material - Resin: Polyester Alloy
- Net Weight: 5.500 grams
- Number of Rows: 1
- Packaging Type: Bag
- Pitch - Mating Interface: 2.54mm
- Termination Interface: Style: Crimp or Compression
- Wire Insulation Diameter: 1.63mm max
- Wire Size AWG: 22
- Wire/Cable Type: Discrete Wire Assembly
- Current - Maximum per Contact: 3.0A
- Voltage - Maximum: 600V AC/DC
- Operating Temperature Range: -40°C to +105°C
- Certifications: UL Listed, CSA Certified
- Environmental Compliance: RoHS, China RoHS, ELV Not Relevant
- Housing Material: Polyester Alloy
- Contact Material: Phosphor Bronze
- Plating Material: Tin
Buy the Molex Series 216272 Cable Assembly: 2162721051
Purchase the Molex 2162721051 stackable linear cable assembly online today for your industrial, prototyping, or manufacturing needs. Featuring positive lock, dual contact points, and rated for 600V and 3A, this assembly ensures reliable, long-lasting performance in high-vibration environments. Its durable polyester alloy housing and tin-plated phosphor bronze contacts provide excellent durability and corrosion resistance. The assembly supports various termination styles like crimp, FFC, and IDT, and operates efficiently from -40°C to +105°C, meeting UL and CSA standards. Easy to install and flexible in design, it's an ideal choice ensuring safety, reliability, and efficiency for your projects.
Buy Molex 2162721051 now and experience unmatched reliability, versatile configurations, and durable performance for industrial and prototype applications.
Frequently Asked Questions
Where can I buy MOLEX 2162721051?
You can click on the BUY or RFQ button to purchase 2162721051 from an authorized MOLEX distributor.
How do I troubleshoot issues or seek technical support for part 2162721051?
You can download the 2162721051 datasheet or visit the MOLEX website for support.
Who is the manufacturer of 2162721051?
MOLEX
