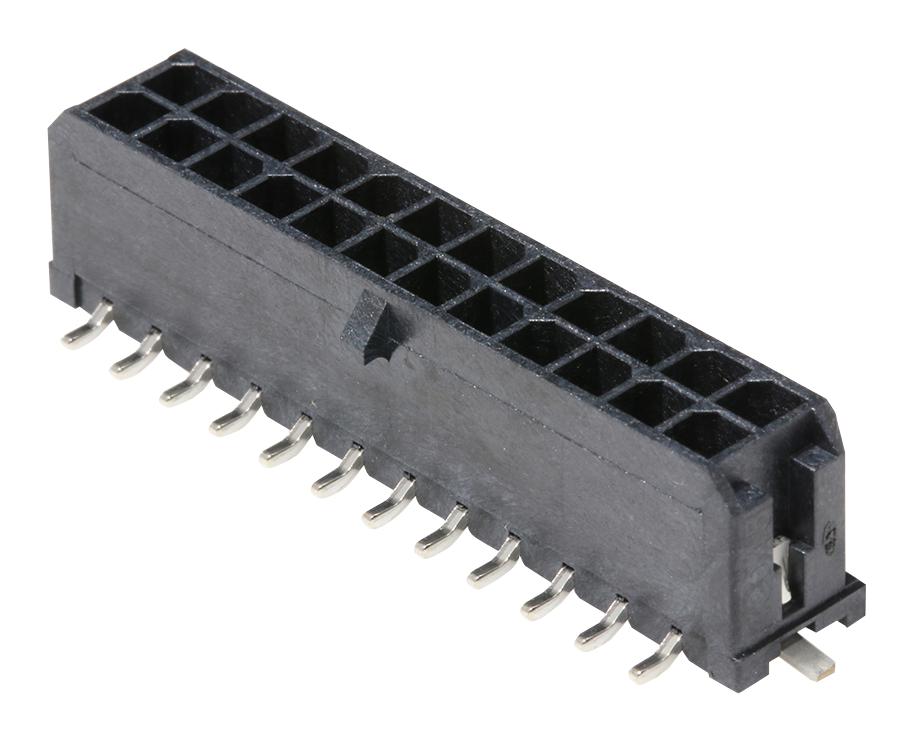

MOLEX 430452419 Power Connector
The Micro-Fit 3.0 Vertical Header is a 3.00mm pitch power connector with dual rows, 24 circuits, and solder tab, suitable for high-temperature electronic applications. Constructed from high-performance thermoplastic, it features gold-plated contacts for reliable electrical connection and glow-wire capability for safety standards compliance. Its compact design supports surface-mount installation, with operating temperatures from -40°C to +105°C, and a maximum current of 8.5A at 600V, making it ideal for power, wire-to-board, and high-demand electronic systems ensuring durability and safety.
MOLEX 430452419 Power Connector Specifications:
- Pitch: 3.00mm
- Number of circuits: 24
- Color - Resin: Black
- Material - Resin: High temperature thermoplastic
- Material - Metal: Copper alloy
- Material - Plating Mating: Gold
- Material - Plating Termination: Gold
- Maximum Current: 8.5A
- Maximum Voltage: 600V
- Operating Temperature Range: -40°C to +105°C
- Mated Height: 1.60mm
- Durability: Fully reusable with multiple mating cycles
- Flammability: Glow wire capable, compliance with IEC standards
- Surface Mount Compatibility: Yes
- Packaging: Embossed tape on reel
- Dimensions: 3.00mm pitch, height 1.60mm
- Agency Certification: UL, CSA
Buy the Buy Molex Micro-Fit 3.0 Part Number 0430452419 Online
Order the Molex Micro-Fit 3.0 Power Connector online today and benefit from a high-quality, high-temperature thermoplastic connector designed for durability, safety, and efficient electrical power transmission. Its 3.00mm pitch and 24 circuits provide precise connectivity for demanding electronic systems. With gold-plated contacts, glow-wire capabilities, and surface-mount compatibility, this connector ensures reliable performance in various applications. Enhance your projects, reduce assembly time, and improve safety standards by choosing this trusted power connector from Molex. Buy now to ensure your system's optimal operation.
Buy Molex 0430452419 now and experience unmatched reliability and performance in power and wire-to-board connections.
Frequently Asked Questions
Where can I buy MOLEX 430452419?
You can click on the BUY or RFQ button to purchase 430452419 from an authorized MOLEX distributor.
How do I troubleshoot issues or seek technical support for part 430452419?
You can download the 430452419 datasheet or visit the MOLEX website for support.
Who is the manufacturer of 430452419?
MOLEX
