A Premier B2B Part Search

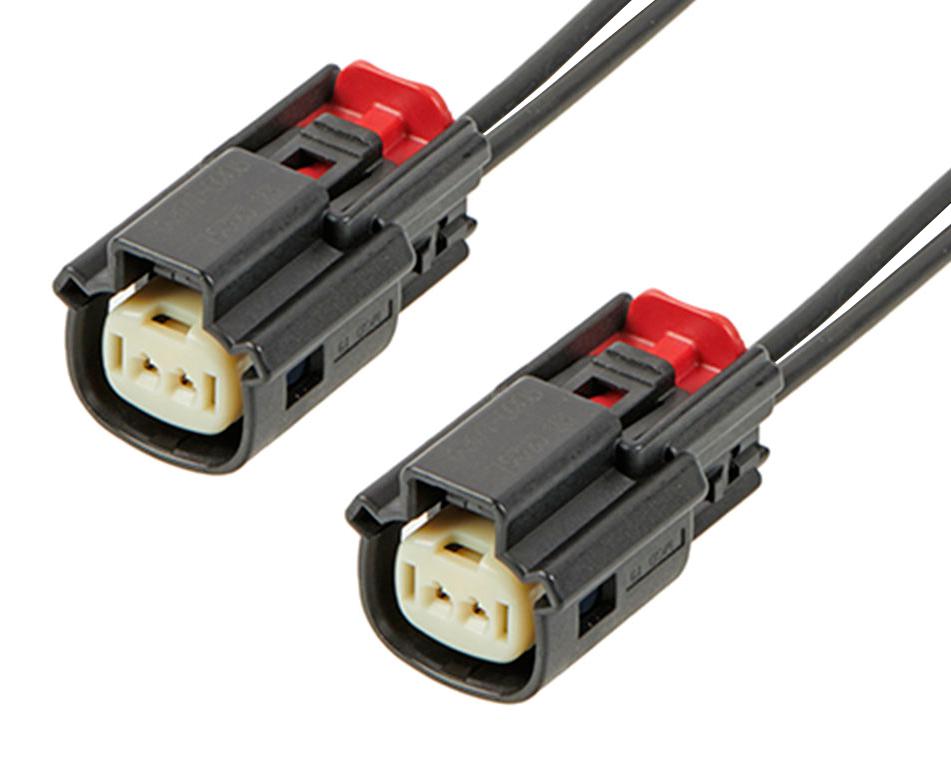

MOLEX 2162801023 MX150 Cable Assembly
The MOLEX 216280-1023 is a robust MX150 Female-to-Female Off-the-Shelf (OTS) Cable Assembly, ideal for power transmission and connectivity in wire-to-board and wire-to-wire applications. It boasts a 600mm length, tin plating for reliable signal transfer, and a durable SPS/Nylon resin construction. The assembly is designed for use with MX150 connectors and offers a secure locking mechanism. It is RoHS compliant and features low halogen content, making it suitable for a wide range of industrial environments.
MOLEX 2162801023 MX150 Cable Assembly Specifications:
- overview: Off-the-Shelf Cable Assemblies
- application: Power, Wire-to-Board, Wire-to-Wire Assembly
- configuration: Dual Ended
- connectors: MX150-to-MX150
- cable_length: 600.00mm
- circuits_loaded: 2
- color_resin: Black
- material_metal: High Performance Alloy (HPA)
- material_plating_mating: Tin
- material_plating_termination: Tin
- material_resin: SPS/Nylon
- net_weight: 394.600 g
- number_of_rows: 1
- packaging_type: Bag
- pitch_mating_interface: 3.50mm
- termination_interface_style: Crimp or Compression
- wire_insulation_diameter_max: 2.70mm
- wire_size_awg: 14
- wire_cable_type: TXL Stranded
- current_maximum_per_contact: 22.0A
- voltage_maximum: 14V DC
- upc: 193264714315
Buy the 216280-1023 MOLEX MX150 Cable Assembly | myMectronic
Purchase the MOLEX 216280-1023 cable assembly securely and conveniently online.
Buy Now
Frequently Asked Questions
Where can I buy MOLEX 2162801023?
You can click on the BUY or RFQ button to purchase 2162801023 from an authorized MOLEX distributor.
How do I troubleshoot issues or seek technical support for part 2162801023?
You can download the 2162801023 datasheet or visit the MOLEX website for support.
Who is the manufacturer of 2162801023?
MOLEX
