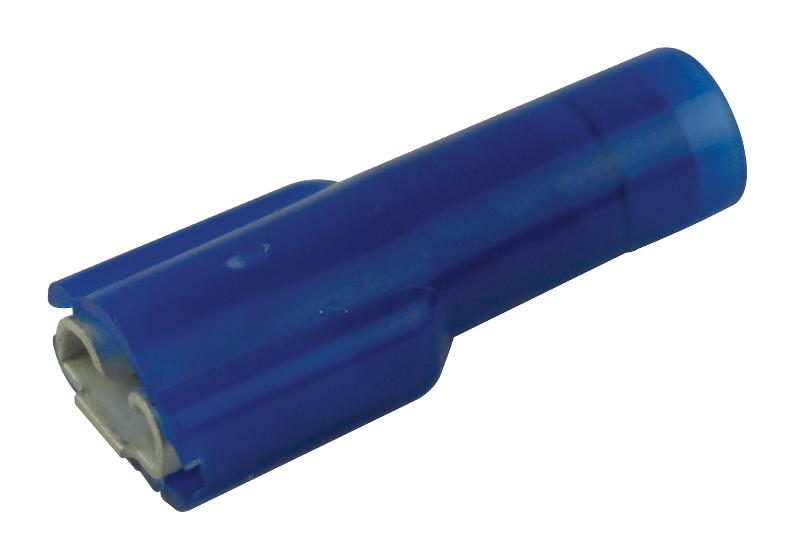

MOLEX 190020037 Female Quick Disconnect Terminal
This fully insulated female quick disconnect terminal is designed for 14-16 AWG wire, suitable for automotive, industrial, and electronic applications. Made from brass with tin plating, it offers reliable electrical conductivity and corrosion resistance. The terminal features a blue nylon insulation for safety and insulation, and its compact design enables easy connection and disconnection. Capable of operating within a temperature range of -65°C to +105°C, it handles a maximum voltage of 300V. Ideal for quick assembly in critical wiring system installations, ensuring secure and long-lasting electrical connections.
MOLEX 190020037 Female Quick Disconnect Terminal Specifications:
- Wire Size: 14-16 AWG
- Wire Diameter: 1.30-2.00 mm
- Material: Brass with Tin plating
- Insulation: Nylon (PA)
- Color: Blue
- Voltage: 300V
- Temperature Range: -65°C to +105°C
- Tab Width: 2.79 mm
- Tab Thickness: 0.81 mm
- Net Weight: 0.802 g
- Lock to Mating Part: Yes
- Polarity: Female
- Gender: Female
- Packaging: Bag
- Certifications: CSA, UL
- RoHS Compliant: Yes
- Halogen-Free: Low-Halogen
Buy the Molex Series Avikrimp Female Quick Disconnect: 190020037
Order the Molex 190020037 female quick disconnect terminal now to ensure secure and quick wiring connections. Designed for 14-16 AWG wire, this terminal features durable brass with tin plating and blue nylon insulation for safety and corrosion resistance. Its compact design allows easy attachment and detachment, ideal for automotive, industrial, and electronic applications. Capable of operating safely within -65°C to +105°C and supporting up to 300V, this high-quality terminal guarantees long-lasting, reliable performance in demanding electrical environments. Purchase online today for fast delivery and trusted quality.
Get Molex 190020037 today—built for quick, reliable, and corrosion-resistant electrical connections in your wiring projects.
