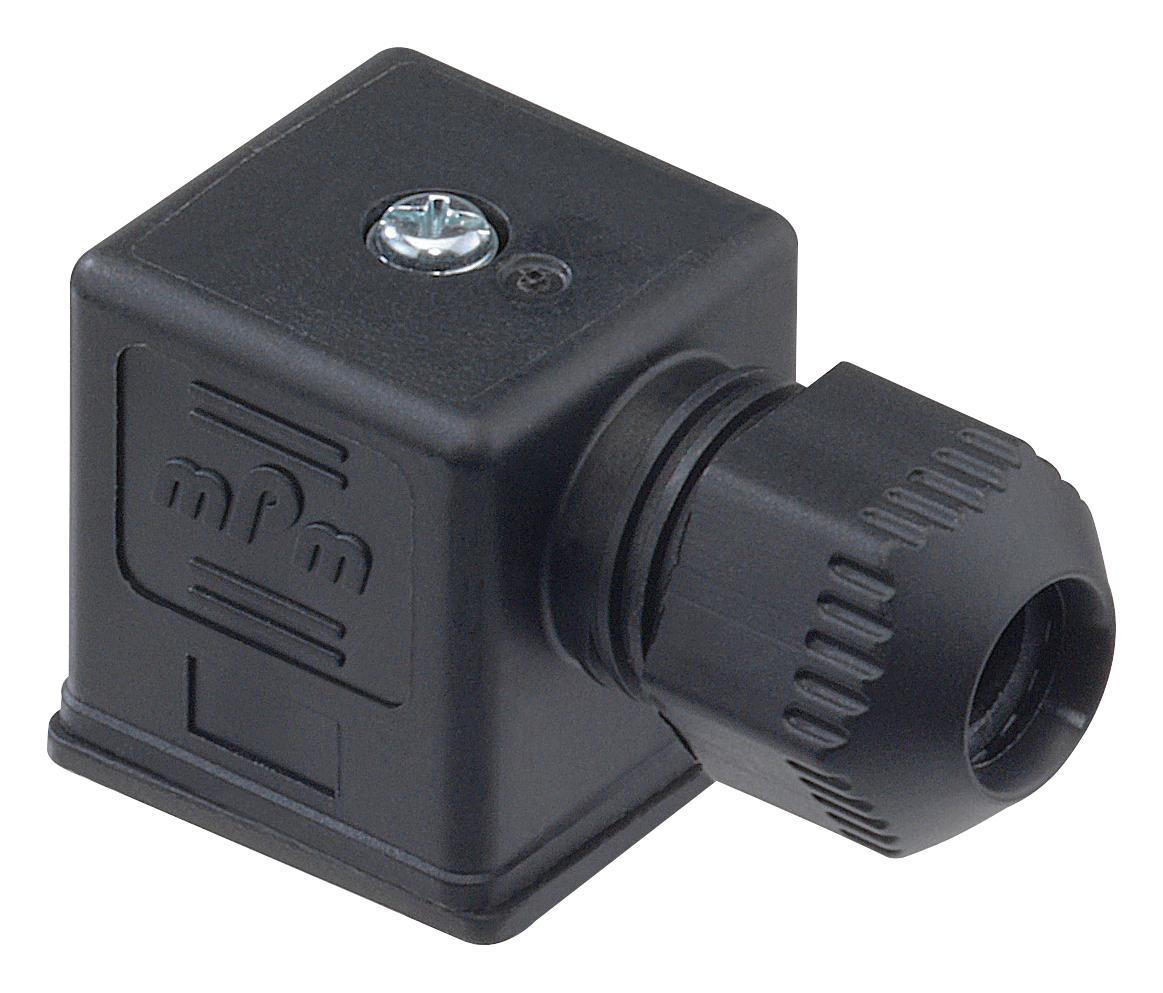

MOLEX 1212010038 DIN Valve Connector
The mPm DIN Valve Connector combines durability and reliability for industrial valve applications. Designed with IP65/IP67 ratings, it features a 3-pole plus ground terminal configuration, external threading, and brass contact material for excellent electrical conductivity. Suitable for operating temperatures from -40°C to +90°C, this connector supports up to 250V AC and 300V DC, with a maximum current of 16A per contact. Its polyamide body and silver-plated contacts ensure robust performance in harsh environments, making it ideal for automation and fluid control systems.
MOLEX 1212010038 DIN Valve Connector Specifications:
- Form: A
- Poles: 3 plus ground
- Voltage Rating: 250V AC / 300V DC
- Maximum Current per Contact: 16.0A
- Material - Contact: Brass
- Material - Connector Body: Polyamide
- Material - Plating: Mating Silver
- IP Rating: IP65, IP67
- Temperature Range: -40°C to +90°C
- Coupling Type: External Thread
- Pitch - Mating Interface: 18.00mm
- Orientation: 90° Angle
- Net Weight: 22.964g
Buy the Buy Molex mPm DIN Valve Connector Part Number 1212010038 Online
Purchase the Molex DIN Valve Connector online today for dependable performance in industrial valve systems. Featuring IP65/IP67 ratings, external threading, brass contacts, and a robust polyamide body, this connector supports 250V AC and 300V DC with a maximum of 16A per contact. Its high-quality silver-plated contacts and operating temperature range of -40°C to +90°C ensure durability in harsh environments. Ideal for automation, fluid control, and industrial machinery, this connector offers secure and reliable connections designed for long-lasting use.
Get Molex 1212010038 today—designed for precision, durability, and reliable fluid control in industrial applications.
Frequently Asked Questions
Where can I buy MOLEX 1212010038?
You can click on the BUY or RFQ button to purchase 1212010038 from an authorized MOLEX distributor.
How do I troubleshoot issues or seek technical support for part 1212010038?
You can download the 1212010038 datasheet or visit the MOLEX website for support.
Who is the manufacturer of 1212010038?
MOLEX
