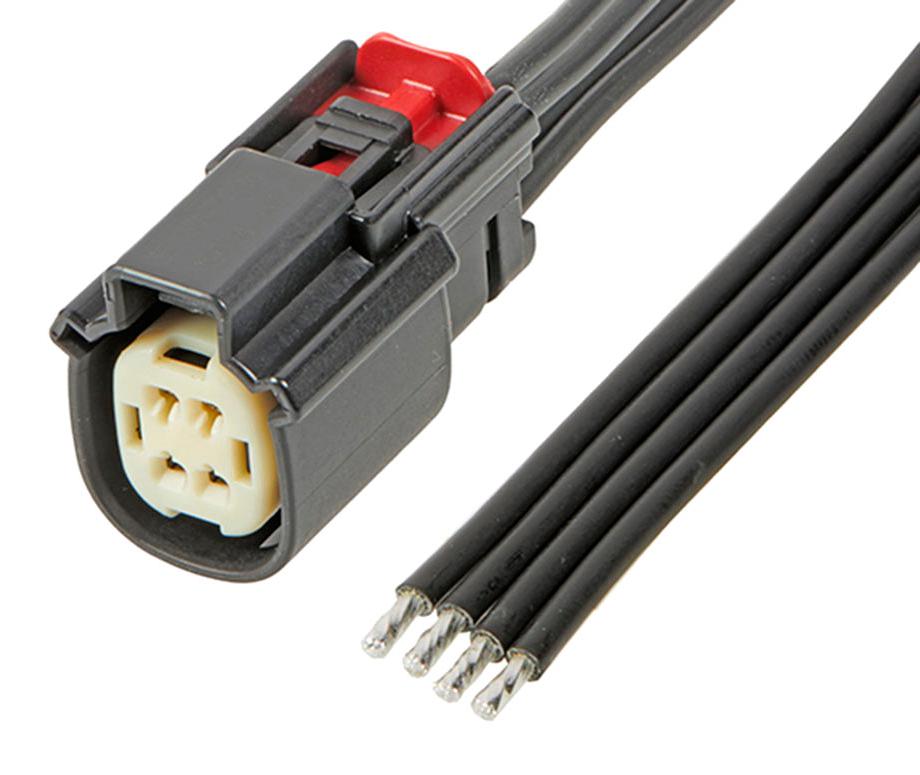

MOLEX 2162861041 MX150 Cable Assembly
The MOLEX 216286-1041 is a robust MX150 Female-to-Pigtail Off-the-Shelf (OTS) Cable Assembly designed for reliable power transmission and connectivity. This assembly boasts a 150mm length, tin plating on both mating and termination interfaces, and is configured with 4 circuits. Constructed with a high-performance alloy (HPA) and SPS/Nylon resin, it offers durability and secure connections. It is suitable for wire-to-board and wire-to-wire applications, and is compatible with MX150 Sealed Dual Row Male Connectors.
MOLEX 2162861041 MX150 Cable Assembly Specifications:
- overview: Off-the-Shelf Cable Assemblies
- application: Power, Wire-to-Board, Wire-to-Wire
- configuration: Single Ended
- connector_type: MX150-to-Pigtail
- cable_length: 150.00mm
- circuits_loaded: 4
- color_resin: Black
- material_metal: High Performance Alloy (HPA)
- material_plating_mating: Tin (Sn)
- material_plating_termination: Tin (Sn)
- material_resin: SPS/Nylon
- net_weight: 217.900 g
- number_of_rows: 2
- packaging_type: Bag
- pitch_mating_interface: 3.50mm
- wire_insulation_diameter: 2.70mm max
- wire_size_awg: 14
- wire_cable_type: TXL Stranded
- current_max_per_contact: 22.0A
- voltage_max: 14V DC
- upc: 193264714599
- halogen_free_status: Low-Halogen
- reach_svhc: Not Contained
- elv: Not Relevant
- rohs: Compliant
- phthalates: Not Contained
