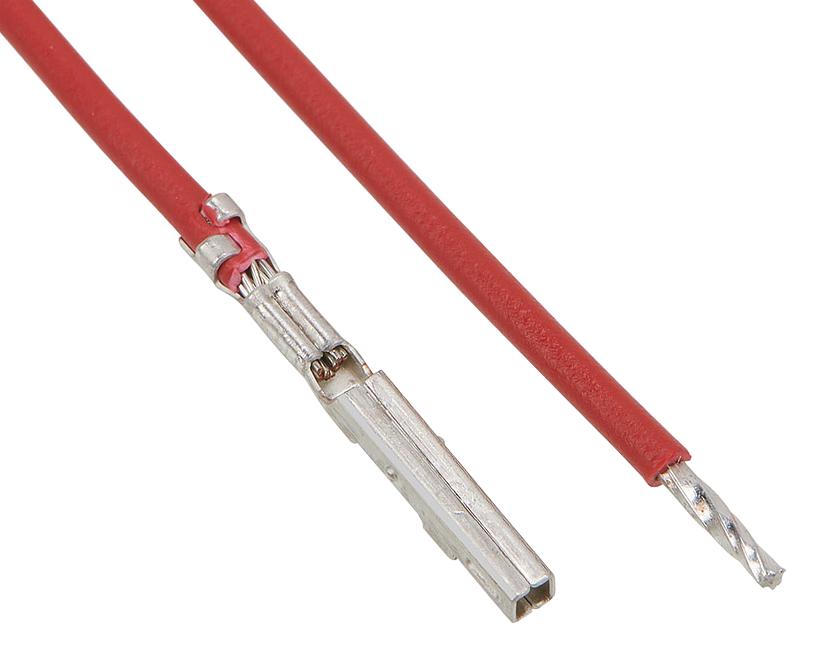

MOLEX 2153462122 Pre-Crimped Lead
This pre-crimped lead from Molex features a 3.6 female-to-pigtail connection with tin plating, measuring 150mm in length. Designed for reliable connections, it supports 16 AWG wire size, with a maximum current of 14A and voltage of 600V. Made from copper alloy with matte tin plating, it ensures durability and corrosion resistance. Suitable for industrial wiring and electronic applications, the lead is supplied in a bag, providing an easy and efficient means for assembly. Its compact design and high-quality materials make it ideal for various electrical harness and cable assembly tasks.
MOLEX 2153462122 Pre-Crimped Lead Specifications:
- Cable Length: 150.00mm
- Wire Size AWG: 16
- Wire Insulation Diameter: 1.90mm-2.40mm
- Material - Metal: Copper Alloy
- Material - Plating Mating: Matte Tin
- Color - Resin: Red
- Gender: Female-Pigtail
- Number of Rows: 1
- Packaging Type: Bag
- Pitch - Mating Interface: 3.60mm
- Current - Maximum per Contact: 14.0A
- Voltage - Maximum: 600V
- Termination Interface: Style: Crimp or Compression
- RoHS and REACH compliant, Halogen-Free, Low-Halogen
Buy the Molex 2153462122 – Reliable Crimped Leads for Industrial Applications
Order the Molex 2153462122 pre-crimped lead today for high-quality electrical connections. Designed for durability with tin-plated copper alloy and suitable for 16 AWG wires, this 150mm long lead offers excellent current capacity of 14A at 600V. Its reliable crimp or compression termination style ensures secure connections in industrial wiring, automation, and electronic systems. Packaged in a convenient bag, this lead simplifies your assembly process and guarantees consistent performance for professional and DIY projects alike.
Buy Molex 2153462122 now and experience unmatched reliability and performance in your electrical and cable assembly projects.
Frequently Asked Questions
Where can I buy MOLEX 2153462122?
You can click on the BUY or RFQ button to purchase 2153462122 from an authorized MOLEX distributor.
How do I troubleshoot issues or seek technical support for part 2153462122?
You can download the 2153462122 datasheet or visit the MOLEX website for support.
Who is the manufacturer of 2153462122?
MOLEX
