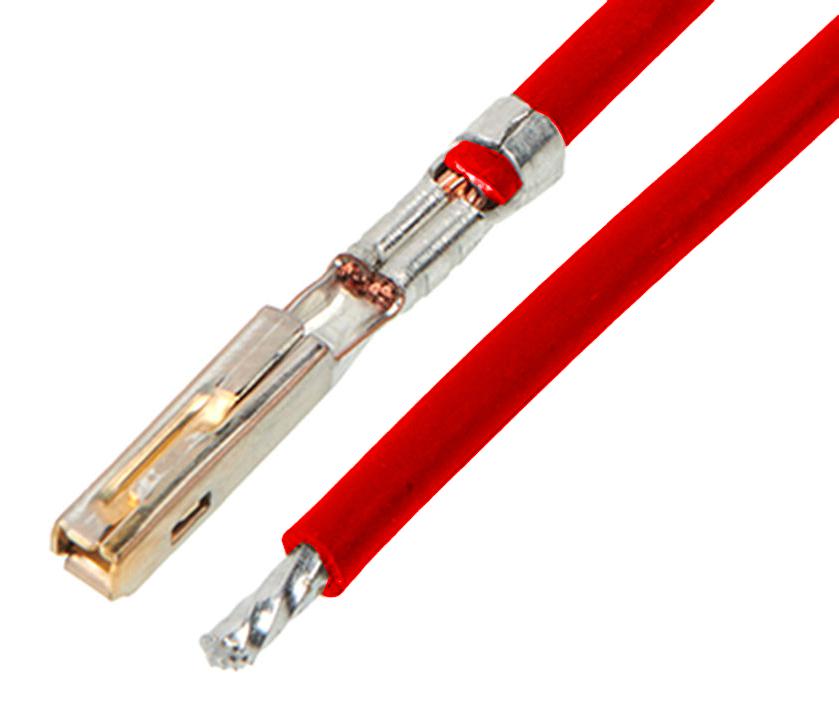

MOLEX 2163012216 MX150 Pre-Crimped Lead
The MOLEX 216301-2216 is an off-the-shelf pre-crimped lead assembly, specifically designed for use with MX150 connectors. This lead provides a convenient and reliable connection between MX150 female connectors and pigtail configurations. The gold plating ensures excellent conductivity and corrosion resistance, making it suitable for power and signal transmission applications in wire-to-board and wire-to-wire assemblies. It is ideal for applications requiring a pre-terminated connection, simplifying assembly and reducing labor costs.
MOLEX 2163012216 MX150 Pre-Crimped Lead Specifications:
- overview: Off-the-Shelf Pre-Crimped Leads
- application: Power, Wire-to-Board, Wire-to-Wire Assembly
- configuration: Pre-crimped Lead Only
- connector_to_connector: MX150 Terminal-to-Pigtail
- cable_length: 600.00mm
- circuits_loaded: 1
- color_resin: Red
- material_metal: High Performance Alloy (HPA)
- material_plating: Gold (Au)
- net_weight: 10.361/g
- packaging_type: Bag Single Ended
- termination_interface_style: Crimp or Compression
- wire_insulation_diameter_max: 2.70mm
- wire_size_awg: 16
- wire_cable_type: TXL
- current_maximum_per_contact: Contact Molex
- voltage_maximum: 14V DC
- upc: 195842118508
- elv: Not Relevant
- rohs: Compliant
- reach_svhc: Not Contained
- china_rohs: Not Contained Per D(2020)9139-DC (19 Jan 2021)
- halogen_free: Low-Halogen
- drawing_number: 2163011211-000
- use_with_housing: MX150 Dual Row Housing 33472, MX150 Single Row Housing 33471, MX150 Hybrid Housing 33476
