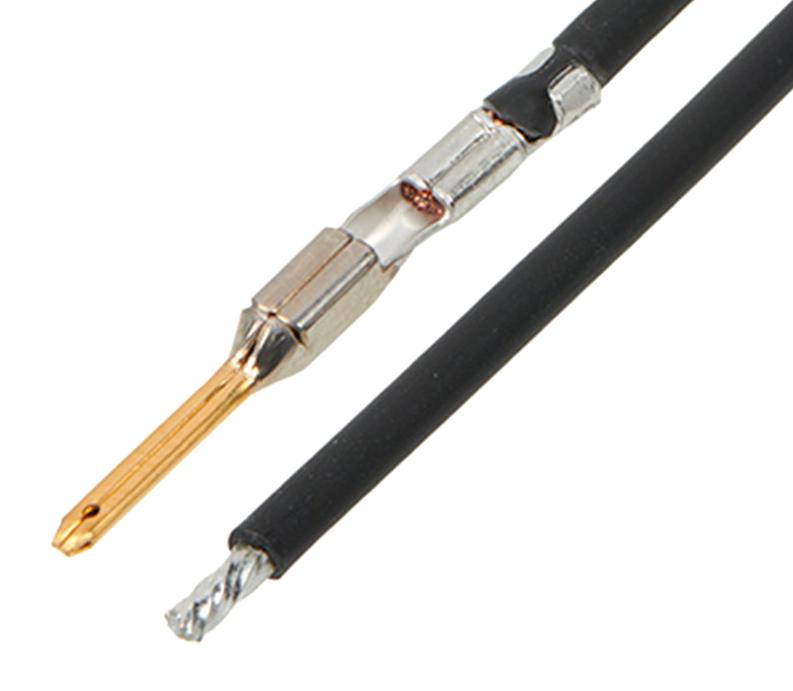

MOLEX 2163031225 MX150 Pre-Crimped Lead
The MOLEX 216303-1225 is an off-the-shelf pre-crimped lead assembly, specifically designed for applications requiring a ready-to-use connection. This lead connects MX150 terminals to a pigtail, offering a convenient solution for power, wire-to-board, and wire-to-wire configurations. The gold plating ensures reliable electrical contact, while the 14 AWG wire gauge provides adequate current carrying capacity. It is RoHS compliant and suitable for use in various industrial and commercial settings.
MOLEX 2163031225 MX150 Pre-Crimped Lead Specifications:
- overview: Off-the-Shelf Pre-Crimped Leads
- application: Power, Wire-to-Board, Wire-to-Wire Assembly
- configuration: Pre-crimped Lead Only
- connector_to_connector: MX150 Terminal-to-Pigtail
- cable_length: 450.00mm
- circuits_loaded: 1
- color_resin: Black
- material_metal: High Performance Alloy (HPA)
- plating_material: Gold (Au)
- net_weight: 15.443/g
- packaging_type: Bag Single Ended
- termination_interface_style: Crimp or Compression
- wire_insulation_diameter_max: 2.70mm
- wire_size_awg: 14
- wire_cable_type: TXL
- current_max_per_contact: Contact Molex
- voltage_max: 14V DC
- elv_compliance: Not Relevant
- rohs_status: Compliant
- reach_svhc_status: Not Contained
- china_rohs_status: Not Contained Per D(2020)9139-DC
- halogen_free_status: Low-Halogen
