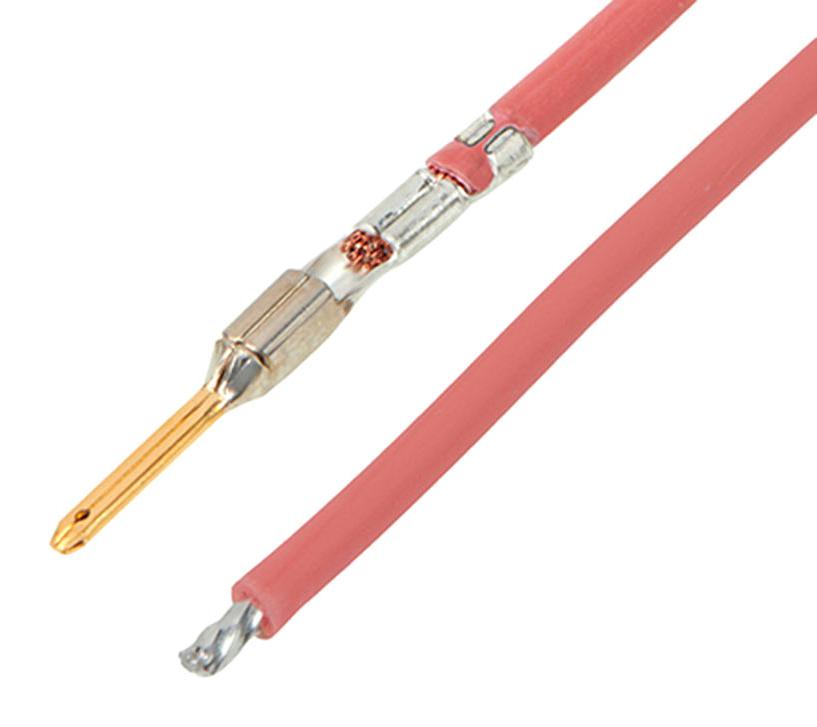

MOLEX 2163032223 MX150 Pre-Crimped Lead
The MOLEX 216303-2223 is an off-the-shelf pre-crimped lead assembly, specifically designed for applications requiring a ready-to-use connection. It utilizes an MX150 terminal-to-pigtail configuration with gold plating for enhanced conductivity and corrosion resistance. This lead is ideal for power transmission, wire-to-board, and wire-to-wire connections in industrial and commercial settings. The 14 AWG wire gauge and 225mm length provide flexibility and accommodate a range of connection scenarios.
MOLEX 2163032223 MX150 Pre-Crimped Lead Specifications:
- overview: Off-the-Shelf Pre-Crimped Leads
- application: Power, Wire-to-Board, Wire-to-Wire Assembly
- configuration: Pre-crimped Lead Only
- connector_to_connector: MX150 Terminal-to-Pigtail
- cable_length: 225.00mm
- circuits_loaded: 1
- color_resin: Red
- material_metal: High Performance Alloy (HPA)
- plating_mating: Gold
- net_weight: 5.729/g
- packaging_type: Bag Single Ended
- termination_interface_style: Crimp or Compression
- wire_insulation_diameter_max: 2.70mm
- wire_size_awg: 14
- wire_cable_type: TXL
- current_maximum_per_contact: Contact Molex
- voltage_maximum: 14V DC
- elv: Not Relevant
- rohs: Compliant
- reach_svhc: Not Contained
- china_rohs: Not Contained Per D(2020)9139-DC (19 Jan 2021)
- halogen_free: Yes
- status: Low-Halogen
Buy the 216303-2223 MOLEX MX150 Pre-Crimped Lead | myMectronic
Purchase the MOLEX 216303-2223 Pre-Crimped Lead securely and conveniently online.
Buy Now
Frequently Asked Questions
Where can I buy MOLEX 2163032223?
You can click on the BUY or RFQ button to purchase 2163032223 from an authorized MOLEX distributor.
How do I troubleshoot issues or seek technical support for part 2163032223?
You can download the 2163032223 datasheet or visit the MOLEX website for support.
Who is the manufacturer of 2163032223?
MOLEX
