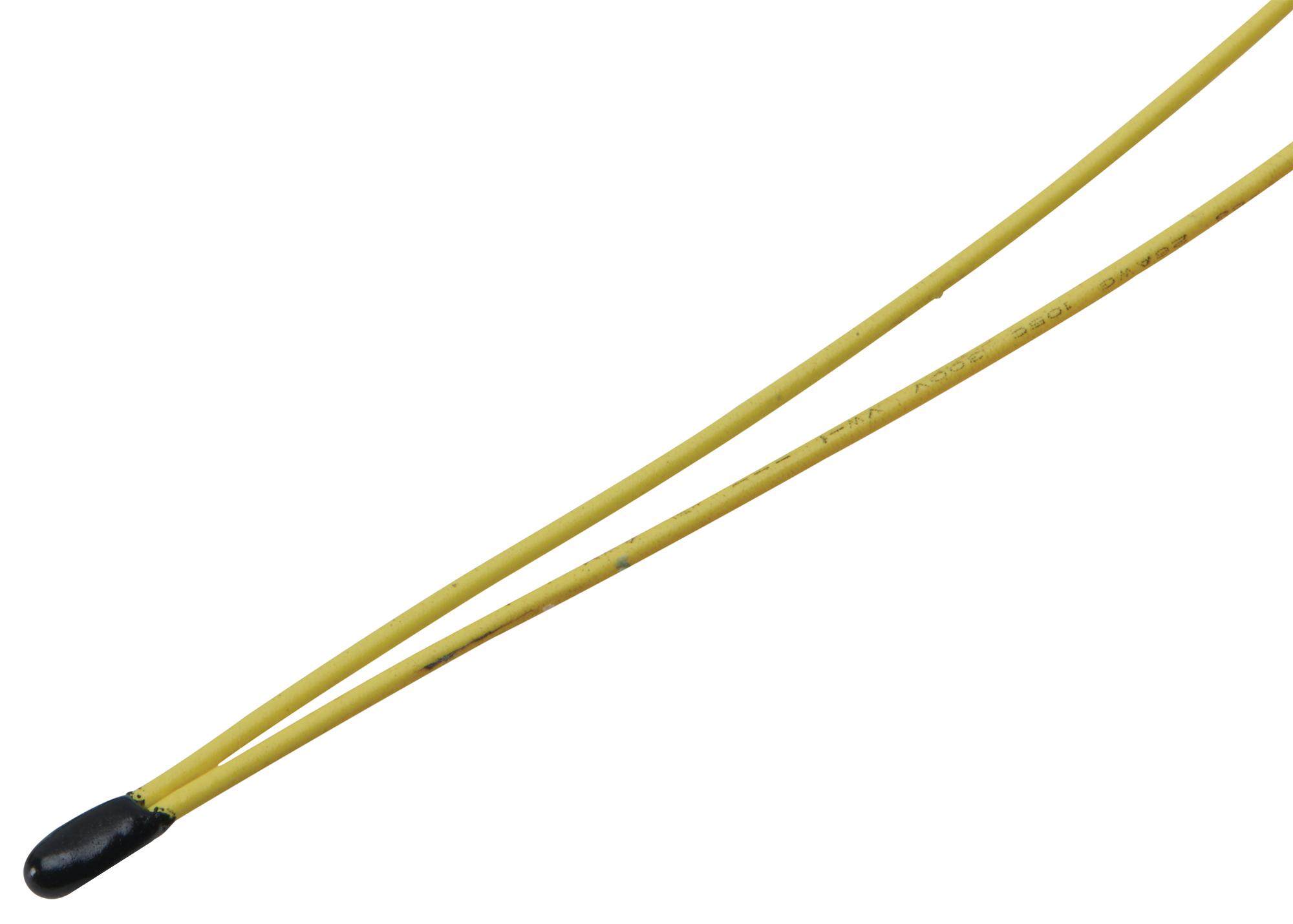

MOLEX 2152723907 NTC Temperature Sensor Cable
The MOLEX 215272-3907 is a temperature sensor cable assembly designed for applications requiring precise temperature monitoring. This cable features an NTC thermistor with an epoxy coating for environmental protection. It offers a 100mm length, a beta value of 3982, and a resistance of 47k ohms at 25°C with a 1% tolerance. The cable is single-ended and includes a locking mechanism for secure mating. It is RoHS compliant and suitable for various industrial and commercial applications where accurate temperature readings are critical.
MOLEX 2152723907 NTC Temperature Sensor Cable Specifications:
- overview: Temperature Sensor Cable Assemblies
- description: Epoxy Coated NTC Thermistor Cables
- length: 100.00mm
- beta_value: 3982
- resistance_at_25c: 47k#
- resistance_tolerance: 1%
- color_resin: Yellow
- cable_length: 100.00mm
- circuits_loaded: 1
- gender: N/A
- lock_to_mating_part: Yes
- net_weight: 0.320/g
- packaging_type: Bag Single Ended
- wire_size_awg: 28
- upc: 193264876471
- series: 215272
- elv_compliance: Not Relevant
- rohs_compliance: Compliant with Exemption 15(a)
- reach_svhc: lead
- halogen_free_status: Not Reviewed
