MOLEX 2164001062 Datasheet & Stock

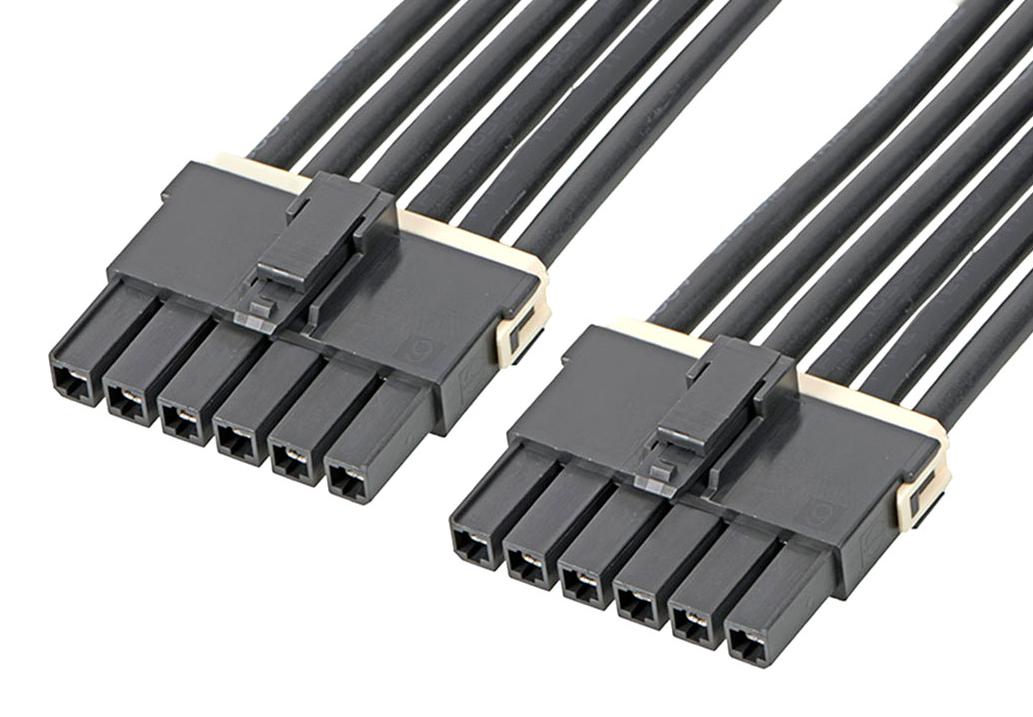

The Mega-Fit female-to-Mega-Fit female off-the-shelf cable assembly supports a current rating of 25A and features a compact connector suitable for prototyping and production. It has polarized and uniquely keyed connectors to prevent mis-mating and electrical arcing, along with an internal locking mechanism for secure connection. The housing is made of flame-retardant material meeting V0 and glow-wire European standards. Additional features include terminal backout prevention (TPA), low insertion force, and a new latch design providing superior retention. The assembly employs high-conductivity copper contacts with tin plating and is certified by UL and CSA. Designed for use with 12 AWG wires, the maximum voltage is 600V AC/DC, with operating temperatures from -40°C to +105°C. Mating and unmating forces are up to 6.8N and 5N respectively, with durability up to 25 mating cycles. Suitable for applications in commercial vehicles, home appliances, industrial equipment, and telecommunications.

View 2164001062Datasheet [pdf]
