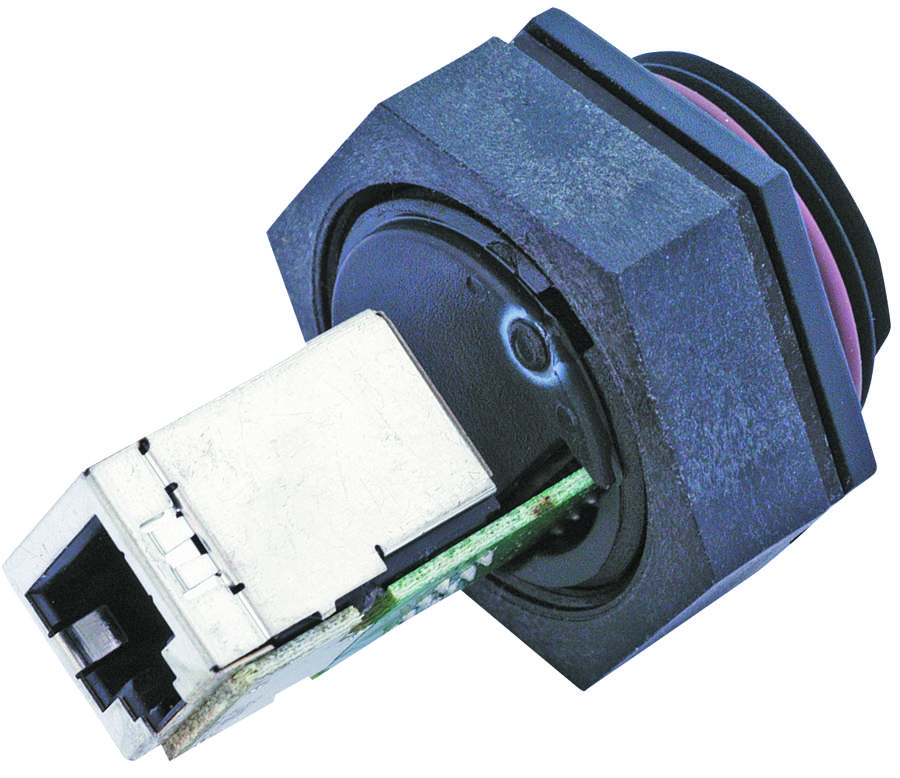

MOLEX 1300550001 Brad RJ-Lnxx Ethernet Connector
The MOLEX 1300550001 is a robust, shielded RJ45 connector within the Brad Industrial Ethernet Solutions series. Designed for demanding industrial environments, this connector offers reliable data transmission with its external thread coupling and straight orientation. Its IP67 rating ensures protection against dust and water ingress, while the operating temperature range of -20°C to +80°C allows for use in a variety of climates. The connector is RoHS compliant and features a female gender with no keyway. It is ideal for applications requiring a secure and shielded Ethernet connection in industrial settings.
MOLEX 1300550001 Brad RJ-Lnxx Ethernet Connector Specifications:
- Product Family: Industrial Receptacles
- Series: 130055
- IP Rating: IP67
- Overview: Brad Industrial Ethernet Solutions
- Product Name: Brad, RJ-Lnxx, RJ45
- Type: Bulkhead Feed-Through
- UPC: 78172553725
- Coupling Type: External Thread
- Gender: Female
- Keyway: None
- Material - Component: ABS
- Mounting Thread Size: 1" - 14 UNC
- Net Weight: 27.100/g
- Orientation: Straight
- Temperature Range - Operating: -20°C to +80°C
- Current - Maximum per Contact: 1.5A
- Voltage - Maximum: 125V DC
- Engineering Number: ENSP1F5
- Sales Drawing: SD-130055-017
- EU ELV: Not Relevant
- China RoHS: Compliant
- REACH SVHC: Not Contained
- Halogen-Free Status: Not Reviewed
- RoHS Phthalates: Not Contained
