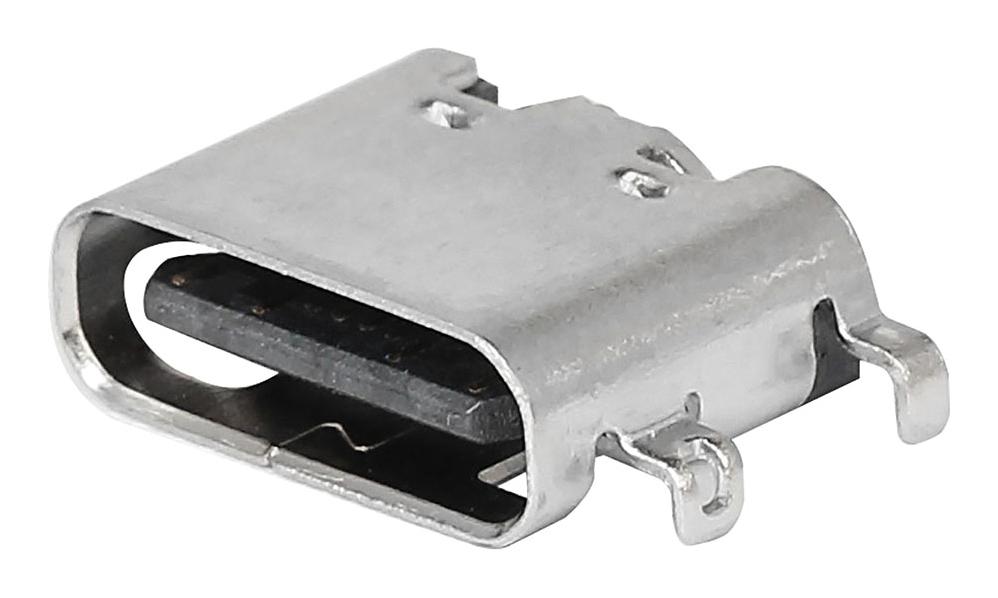

MOLEX 2169900003 USB Type-C Connector
This USB Type-C receptacle is designed for high-speed data transfer up to 40 Gbps and supports 5.0A/100W power delivery, making it suitable for consumer electronics, industrial, and IoT devices. It features a robust metal shell, waterproof IPx8 rating, and a long outer shell for flexibility in thin or thick enclosures. The connector offers easy assembly with one-row SMT soldering, enhanced durability with a minimum of 10,000 mating cycles, and excellent weather resistance. Its precise dimensions and materials ensure reliable long-term performance in demanding environments.
MOLEX 2169900003 USB Type-C Connector Specifications:
- Material: Copper Alloy contact, high-temperature nylon housing, LCP plug
- Current Rating: 5.0A maximum
- Voltage Rating: 30V maximum
- Durability: Minimum 10,000 mating cycles
- Contact Resistance: 40 milliohms initial, 50 milliohms after test
- Insulation Resistance: 100 Megohms minimum
- Dielectric Withstanding Voltage: 100V AC (standard), 500V AC (certified models)
- Housing: High-temperature nylon and LCP for robustness
- Dimensions: Suitable for PCB thickness 0.60 to 0.80mm and 1.60mm for specific series
- Operating Temperature: -30°C to +85°C/-40°C to +85°C depending on series
- Waterproof Rating: IPx8
- Mounting Style: Top-mount, mid-mount, vertical, upright, dual row
- Soldering: SMT with re-work facilitated, hybrid soldering design available
- Applicable Standards: RoHS compliant, halogen-free
Buy the Buy Molex USB Type-C Receptacle Part Number 2169900003 Online
Order the Molex USB Type-C connector online today to ensure your devices benefit from reliable, high-speed data transfer up to 40 Gbps, and 5.0A power capacity. Engineered with a durable metal shell and waterproof IPx8 rating, this connector provides excellent weather resistance and robust performance in consumer electronics, industrial, and IoT applications. Its easy SMT assembly, space-saving design, and long cycle durability guarantee dependable connectivity and simplified integration into various device housings. Upgrade your designs with this versatile, high-performance USB Type-C connector.
Get Molex 2169900003 today—built for high-speed data transfer, waterproof performance, and long-lasting durability.
Frequently Asked Questions
Where can I buy MOLEX 2169900003?
You can click on the BUY or RFQ button to purchase 2169900003 from an authorized MOLEX distributor.
How do I troubleshoot issues or seek technical support for part 2169900003?
You can download the 2169900003 datasheet or visit the MOLEX website for support.
Who is the manufacturer of 2169900003?
MOLEX
