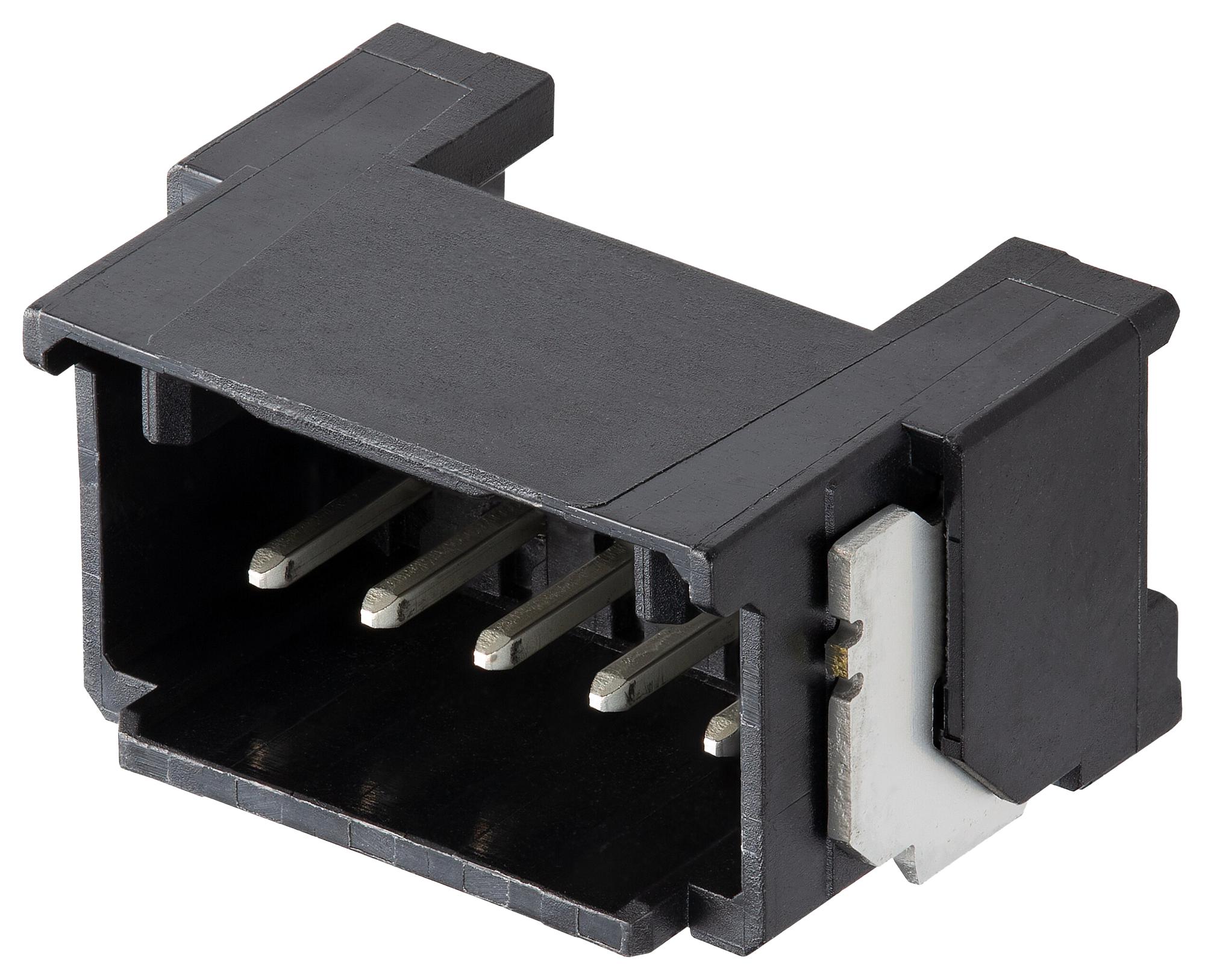

MOLEX 2170640021 Micro-One Wire-to-Board Header
The MOLEX 217064-0021 is a Micro-One wire-to-board header, part of the 217064 series, engineered for robust and reliable connections in wire-to-board applications. This right-angle header features a 2.00mm pitch and a single-row design, making it ideal for space-constrained environments. The tin-bismuth plating ensures excellent solderability and corrosion resistance. It is glow-wire capable, indicating suitability for applications requiring high temperature performance. Designed with a polyamide resin and brass material, this header offers durability and structural integrity. It is RoHS compliant and features a polarized design for secure PCB mounting.
MOLEX 2170640021 Micro-One Wire-to-Board Header Specifications:
- overview: Micro-One Wire-to-Board Connector System
- description: Micro-One Wire-to-Board Header, Right-Angle, 2.00mm Pitch, Single Row, Glow-Wire Capable, 2 Circuits, Tin-Bismuth Plating, Black
- series: 217064
- application: Power, Wire-to-Board
- circuits_loaded: 2
- circuits_maximum: 2
- color_resin: Black
- durability_mating_cycles: 30
- glow_wire_capable: Yes
- lock_to_mating_part: Yes
- material_metal: Brass
- material_plating: Tin-Bismuth
- material_resin: Polyamide
- number_of_rows: 1
- orientation: Right Angle
- pcb_retention: Yes
- pitch_mating_interface: 2.00mm
- polarized_to_pcb: Yes
- temperature_range_operating: -40° to +105°C
- termination_interface_style: Surface Mount
- current_maximum_per_contact: 4.0A
- voltage_maximum: 250V AC (RMS)/DC
- material_info_reach_svhc: Not Contained Per - D(2020)9139-DC (19 Jan 2021)
- halogen_free_status: Not Low-Halogen
- drawing_number: 2170640000-SD-000
