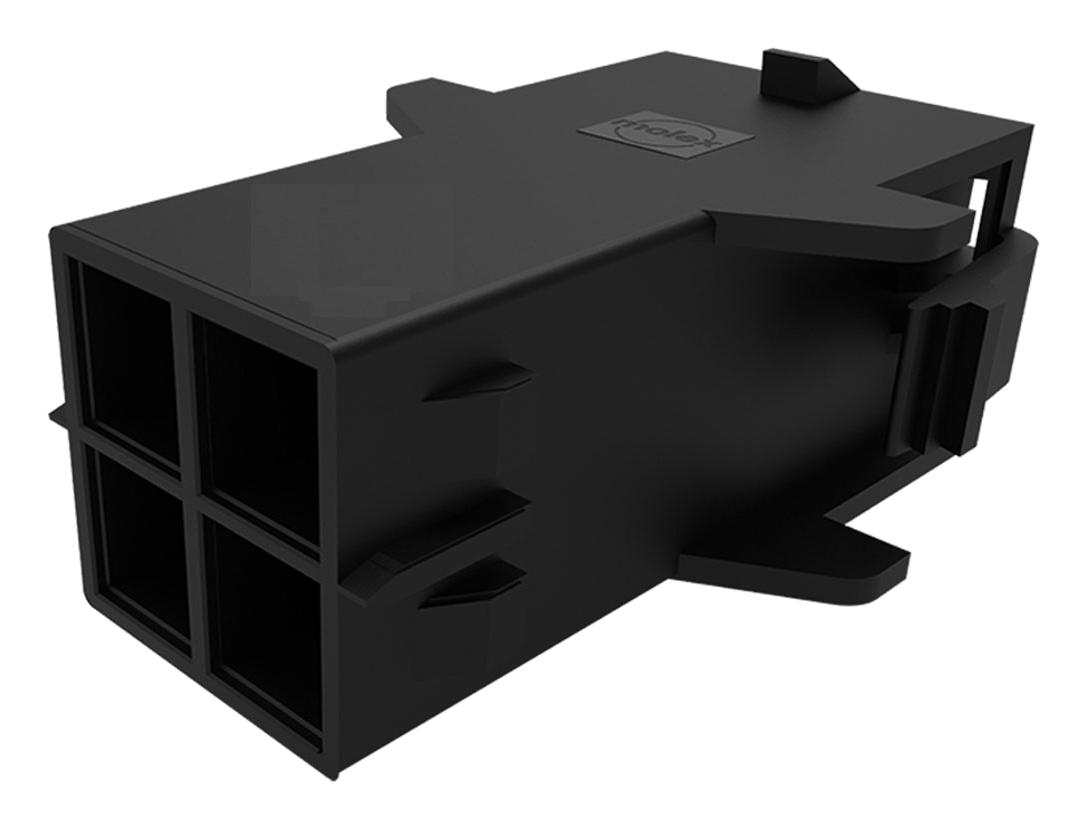

MOLEX 1054111112 Power Connector
Mega-Fit Power Connectors offer high current capacity of 25.0A per circuit with robust, positive locking housing and fully isolated, tin-plated contacts designed for high-density power applications. These connectors feature a 5.70mm pitch, dual and single-row systems, and polarizing keying to prevent mis-mating, ensuring reliable electrical connections. Suitable for home appliances, industrial machinery, and telecom equipment, they support hot-plugging up to 30 cycles at 48V. Constructed with UL 94 V-0 glow wire-compliant materials, these connectors meet RoHS standards, offering durability and safety for demanding environments.
MOLEX 1054111112 Power Connector Specifications:
- Voltage Rating: 600V
- Current Rating: 25.0A per circuit
- Contact Resistance: 6 millichms
- Dielectric Withstanding Voltage: No Breakdown
- Insulation Resistance: 1,000 Megohms
- Operating Temperature: -40 to +150°C
- Housing Material: UL 94 V-0 glow wire composite
- Contact Material: High-conductivity copper with gold or tin plating
- Contact Plating: Gold 0.38 or 0.76 mm or Tin
- PCB Thickness Compatibility: 1.60mm and 2.40mm
- Mating Force: Max 6.8N (tin), Max 6.0N (gold)
- Unmating Force: Max 6.5N (tin), Max 5.6N (gold)
- Durability: Minimum 2 Megohms resistance change over cycles
- Connector Series: Vertical and Right-Angle Headers, Receptacles and Terminals
- Certification: UL, CSA compliant, RoHS
- Standards: Glow wire capable, V-0 flame retardant
Buy the Mega-Fit Power Connectors Series 1054111112: 5.70mm Pitch high-current power connector
Discover the high-performance Mega-Fit Power Connectors designed for demanding industrial, home appliance, and telecom applications. With a 25A current rating, 5.70mm pitch, and robust, UL 94 V-0 glow wire-compliant housing, these connectors ensure durable, safe, and reliable electrical connections. Featuring polarized keying, lock-in positive housing, and optional gold or tin plating, they support hot-plugging up to 30 cycles at 48V. Ideal for systems requiring high power density and space-efficient designs, purchase online today for superior performance.
Buy Mega-Fit Power Connectors Series 1054111112 now and experience unmatched reliability and performance with robust locking and high current capacity.
Frequently Asked Questions
Where can I buy MOLEX 1054111112?
You can click on the BUY or RFQ button to purchase 1054111112 from an authorized MOLEX distributor.
How do I troubleshoot issues or seek technical support for part 1054111112?
You can download the 1054111112 datasheet or visit the MOLEX website for support.
Who is the manufacturer of 1054111112?
MOLEX
