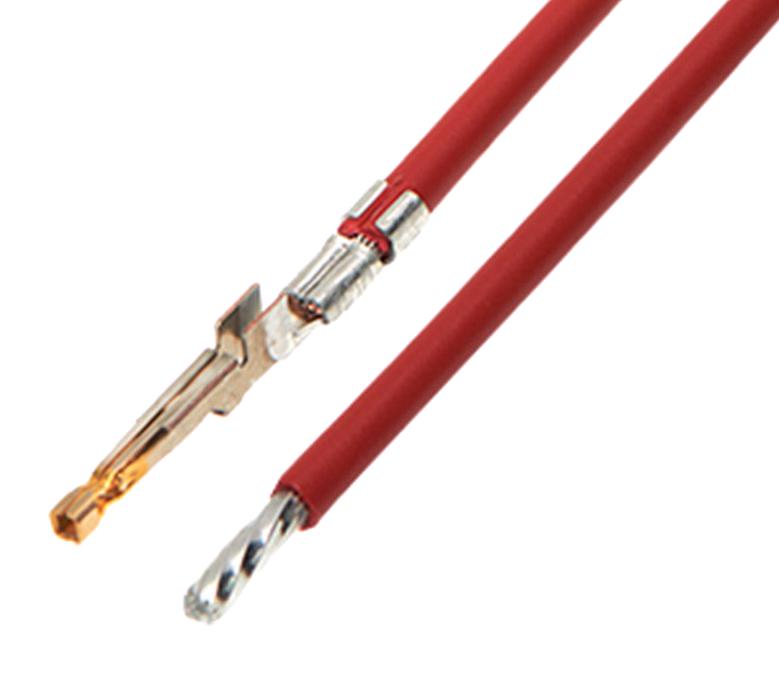

MOLEX 2174712224 Ultra-Fit Female-to-Pigtail
The MOLEX 217471-2224 is a pre-crimped lead cable assembly designed for power and wire-to-board applications. This Ultra-Fit female-to-pigtail connector features gold plating for enhanced conductivity and corrosion resistance. With a 300.00mm length and 16 AWG wire size, it provides a robust and reliable connection solution. It is RoHS compliant and suitable for various industrial and commercial applications requiring secure and efficient power transmission.
MOLEX 2174712224 Ultra-Fit Female-to-Pigtail Specifications:
- overview: Off-the-Shelf Pre-Crimped Leads
- series: 217471
- application: Power, Wire-to-Board
- assembly_configuration: Pre-crimped Lead Only
- connector_type: Ultra-Fit Crimp Terminals
- cable_length: 300.00mm
- wire_size: 16 AWG
- color: Red
- gender: Female-Pigtail
- material_metal: High Conductivity Copper
- plating_material: Gold (Au)
- circuits_loaded: 1
- current_max_per_contact: 12.0A
- voltage_max: 600V AC (RMS)/DC
- wire_insulation_diameter: 2.03-2.39mm
- upc: 195842070288
- packaging_type: Bag
- termination_interface_style: Crimp or Compression
- single_ended: Yes
Buy the 217471-2224 MOLEX Ultra-Fit Female-to-Pigtail | myMectronic
Purchase the MOLEX 217471-2224 Ultra-Fit connector securely and reliably online.
Buy Now
Frequently Asked Questions
Where can I buy MOLEX 2174712224?
You can click on the BUY or RFQ button to purchase 2174712224 from an authorized MOLEX distributor.
How do I troubleshoot issues or seek technical support for part 2174712224?
You can download the 2174712224 datasheet or visit the MOLEX website for support.
Who is the manufacturer of 2174712224?
MOLEX
