MOLEX 2174712225 Ultra-Fit Pre-Crimped Lead

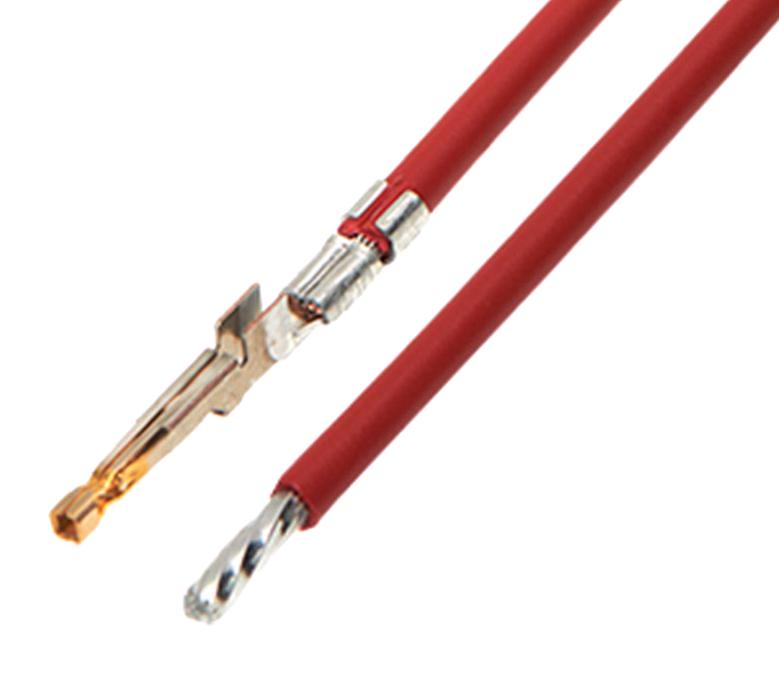

The MOLEX 217471-2225 is an off-the-shelf pre-crimped lead assembly, specifically an Ultra-Fit female-to-pigtail configuration. It is designed for power and wire-to-board applications, offering a convenient and reliable connection solution. The gold plating on the connector ensures excellent conductivity, while the high-conductivity copper material provides durability. This assembly is ideal for applications requiring a pre-terminated connection, simplifying the assembly process and ensuring consistent performance.
MOLEX 2174712225 Ultra-Fit Pre-Crimped Lead Specifications:
- overview: Off-the-Shelf Pre-Crimped Leads
- application: Power, Wire-to-Board Assembly
- configuration: Pre-crimped Lead Only
- connector_type: Ultra-Fit Crimp Terminals
- cable_length: 450.00mm
- circuits_loaded: 1
- color_resin: Red
- material_metal: High Conductivity Copper
- plating_mating: Gold (Au)
- net_weight: 6.794/g
- packaging_type: Bag Single Ended
- termination_interface_style: Crimp or Compression
- wire_insulation_diameter: 2.03-2.39mm
- wire_size_awg: 16
- wire_cable_type: UL 1061
- current_max_per_contact: 12.0A
- voltage_max: 600V AC (RMS)/DC
- upc: 195842070295
- elv_compliance: Not Relevant
- rohs_compliance: Compliant
- reach_svhc_compliance: Not Contained Per D(2020)9139-DC
- halogen_free_status: Low-Halogen
Buy the 217471-2225 MOLEX Ultra-Fit Pre-Crimped Lead | myMectronic
Purchase the MOLEX 217471-2225 Ultra-Fit Pre-Crimped Lead securely and reliably online.
Buy Now
Frequently Asked Questions
Where can I buy MOLEX 2174712225?
You can click on the BUY or RFQ button to purchase 2174712225 from an authorized MOLEX distributor.
How do I troubleshoot issues or seek technical support for part 2174712225?
You can download the 2174712225 datasheet or visit the MOLEX website for support.
Who is the manufacturer of 2174712225?
MOLEX
