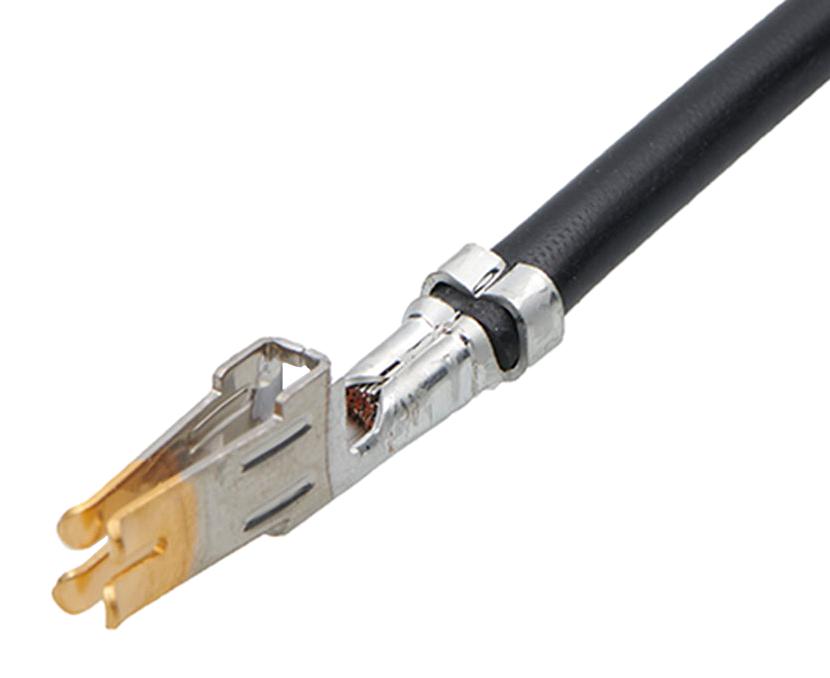

MOLEX 2174811204 Mini-Fit Sr. Pigtail Cable
The MOLEX 217481-1204 is a pre-crimped lead cable assembly designed for power applications, wire-to-board connections, and wire-to-wire assemblies. It utilizes a Mini-Fit Sr. connector and features a pigtail configuration for flexible integration. The gold plating on the mating side ensures excellent conductivity and durability, while the tin plating on the termination side facilitates secure crimping. Constructed with a high-performance alloy (HPA) and PVC resin, this cable assembly is robust and reliable for various industrial applications.
MOLEX 2174811204 Mini-Fit Sr. Pigtail Cable Specifications:
- overview: Off-the-Shelf Pre-Crimped Leads
- application: Power, Wire-to-Board, Wire-to-Wire Assembly
- configuration: Pre-crimped Lead Only
- connector_type: Mini-Fit Sr.
- cable_length: 300.00mm
- circuits_loaded: 1
- color_resin: Black
- gender: Female-Pigtail
- lock_to_mating_part: Yes
- material_metal: High Performance Alloy (HPA)
- plating_mating: Gold (Au) 0.762µm min
- plating_termination: Tin 2.540µm min
- material_resin: PVC
- net_weight: 14.036/g
- number_of_rows: 1
- packaging_type: Bag
- wire_size_awg: 12
- wire_cable_type: UL 10669
- current_max_per_contact: 50.0A
- wire_insulation_diameter_max: 6.60mm
- single_ended: Yes
- termination_interface_style: Crimp or Compression
